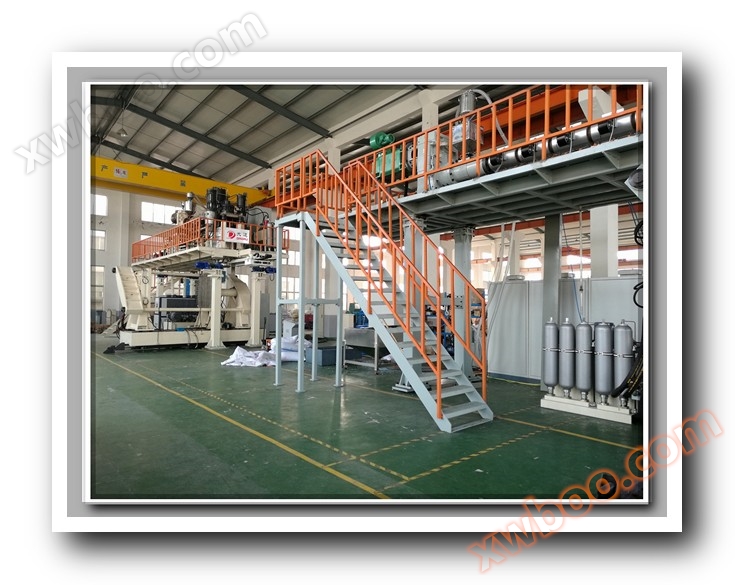

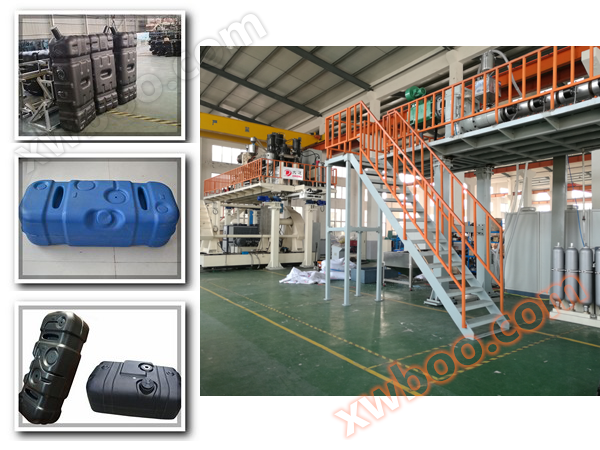

DDSJ300H Avenue Blow Molding Machine, used for producing single-layer diesel tanks and truck fuel tanks

Compared to traditional metal fuel tanks, the advantages of plastic fuel tanks are mainly reflected in the following aspects:

1. Large degree of freedom in shape design and high space utilization.

Compared to metal fuel tanks of the same volume, plastic fuel tanks can reduce their weight by 30% to 50%.

3. Corrosion resistant plastic fuel tanks have the function of resisting erosion from water, dirt, and other media, and do not require maintenance

4. The impact resistance of plastic fuel tanks is 2-4 times that of metal fuel tanks.

5. The plastic fuel tank is made of HMWHDPE material, which has a thermal conductivity of only 1% of that of metal, making it less prone to sparks and explosions, especially when subjected to impact and friction.

Detailed information:

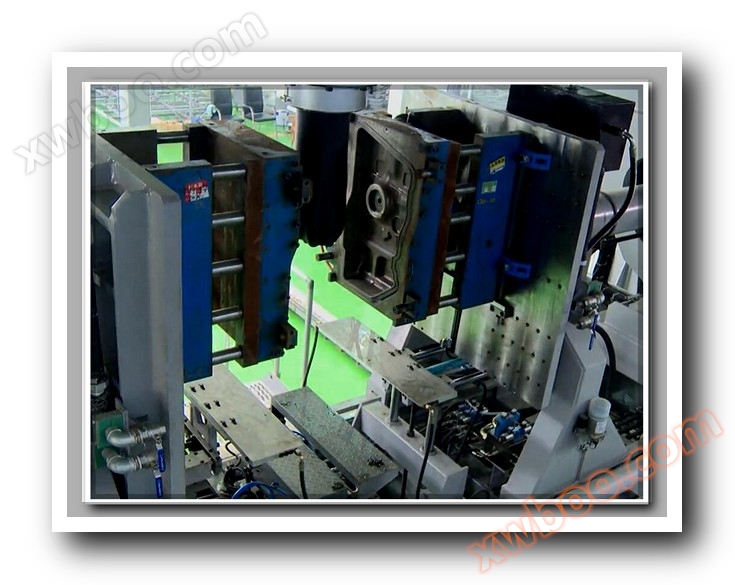

blow molding mold

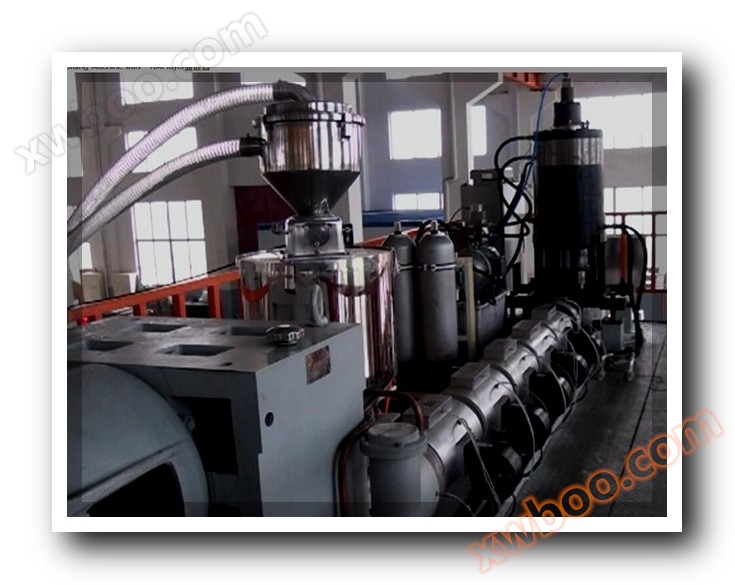

Extruder and screw

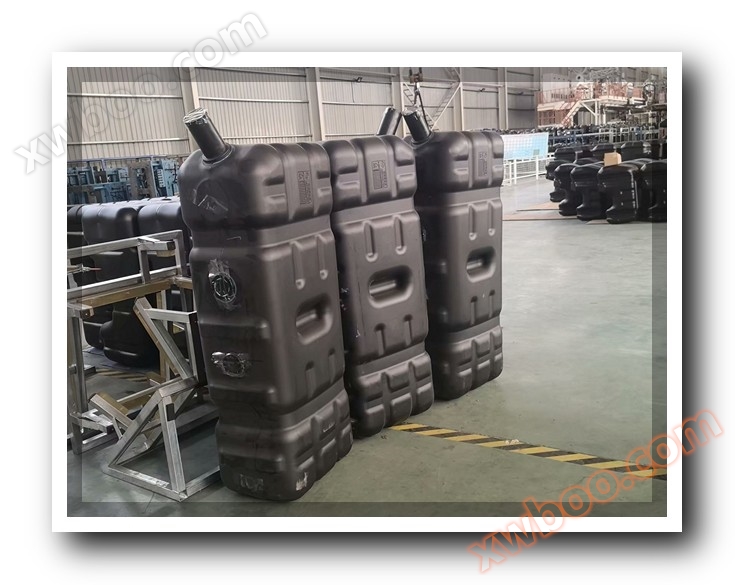

Single layer fuel tank

Characteristics of Avenue Blow Molding Machine:

Main advantages of Dadao blow molding machine

High yield and high quality, energy-saving and environmentally friendly, durable, stable and reliable, fully functional, easy to operate and maintain, highly integrated.

2-Extruder (1-7 pieces)

The extruder is driven by servo motor control, which has fast speed regulation, stability, and energy saving; Key components are treated with 38CrMoAL nitriding

The extruder adopts a new type of barrel slotted forced feeding (IKV) structure. Melt conveying is almost unaffected by back pressure and low melt temperature, with high output and minimal fluctuations, and good plasticizing quality.

3-mode (1-7 layers)

The heating system of the mold head adopts an electromagnetic induction heater, with an energy-saving rate of over 50%.

The mold head channel adopts the most advanced spiral channel form and is optimized and analyzed using Flow2000 software, with no weld marks and uniform distribution of billet quality.

4-type billet wall thickness control system

100 point billet thickness control

5- Electrical Control System

Fully servo motor control, machine control network, using etherCAT bus.

Adopting Omron multifunctional PLC for action control, the main low-voltage electrical components are made of original parts from Schneider in France and Omron in Japan.

Chinese English bilingual touchscreen operation console with visual parameter setting, modification, adjustment, monitoring, and memory storage functions.

6-Hydraulic system

Hydraulic servo drive, servo valve adopts products from MOOG company in the United States, energy-saving, low noise, and low oil temperature.

The main valve types (action valves, flow valves, directional valves) and pump types are original parts from well-known brands (such as Eaton, Daikin, etc.).

7- Fault diagnosis system

A comprehensive fault diagnosis system with detection and alarm prompts for quick troubleshooting.

8- Safety protection system

Strict safety interlock protection function is used to protect equipment and ensure the personal safety of operators

9-Remote Diagnostic System

The device has remote diagnostic function and can provide strong remote technical support and services.

Product Parameters:

DDSJ300H Accumulative BMM configuration DDSJ300H blow molding machine configuration
No.	content	Items	unit Unit	quantity Qty
1	A set of core molds with mouth included in the material storage machine head is installed inside the machine head	Accumulative die-head includes 1 set core die	/Set	1
2	Extruder 120mm	Extruder dia. 120mm	/Set	1
3	Mold closing mechanism	forming tool (clamping unit)	/Set	1
4	Inflation and pre clamping mechanism	Blow device and pre-clamping mechanism	/Set	1
5	Mechanical arm (for picking up raw materials)	manipulator (to catch the parison )	/Set	1
6	rack	Frame	/Set	1
7	Safety protection device	safety protection device	/Set	1
8	Electrical control system (including axial billet wall thickness control system)	electric control system includes Axial parison wall thickness control system	/Set	1
9	Hydraulic control system	Hydraulic control System	/Set	1
10	Pneumatic control system	pneumatic control System	/Set	1
11	Automatic Feeding Machine	material auto-feeding machine	/Set	1
