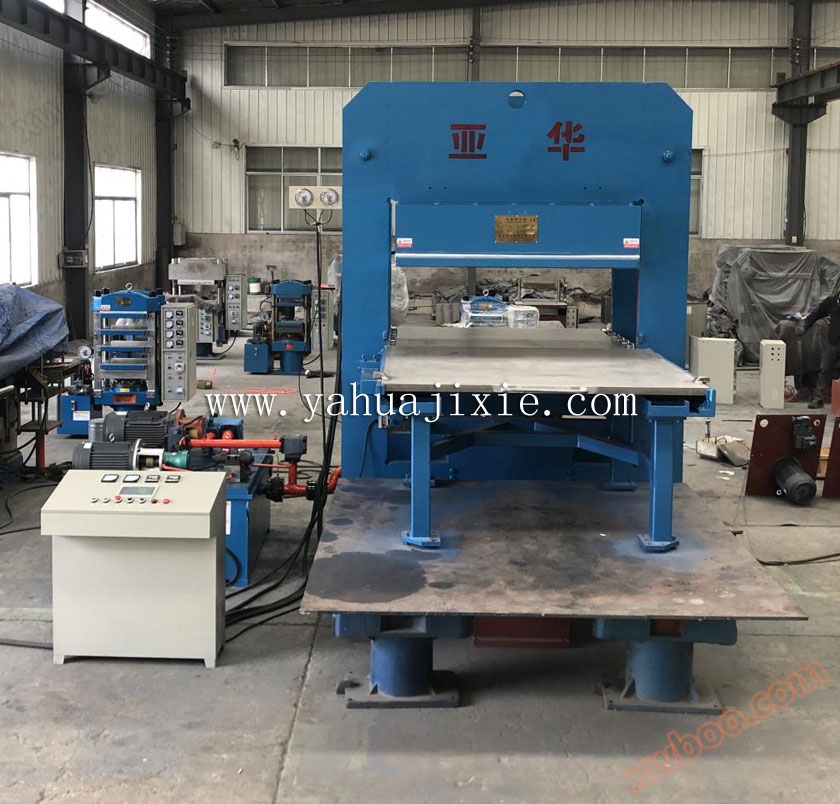

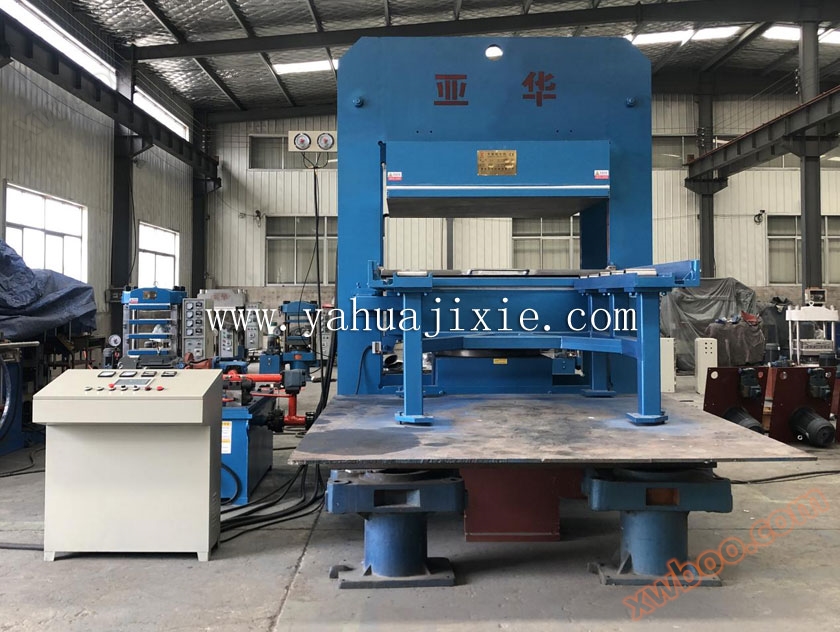

650T vulcanizing machine for bridge support production vulcanizing machine

Technical Specifications:

Main technical parameters of the product:
1. Nominal clamping force: 6.50MN
2. Maximum pressure of working fluid: 19.5MPa
3. Maximum stroke of plunger: 500mm
4. Hot plate area: 1600 × 1600 (mm)
5. Unit area pressure of hot plate: 2.5 MPa
6. Number of working floors: 1 floor
7. Hot plate spacing ............500mm
8. Piston diameter: 650mm
9. Number of plungers 1 set/unit
10. Heating Method: Electric Heating
11. Structural Form: Frame Plate Structure
12. Control mode: PLC automatic control

Equipped with manual push-pull mold device

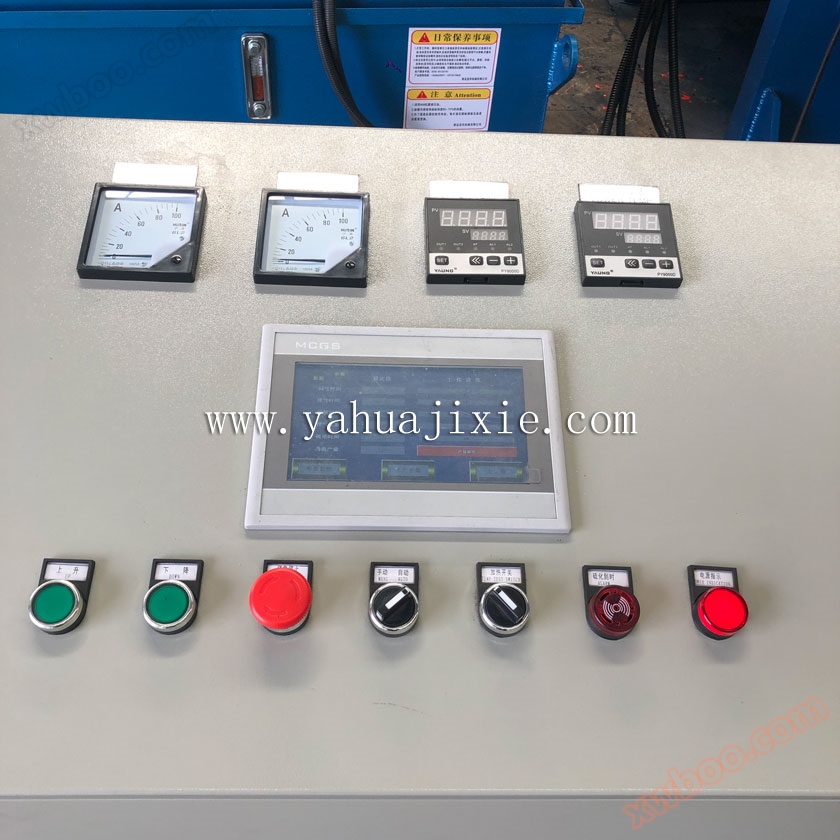

PLC automatic control of the electrical box enables the equipment to have functions such as automatic rise, automatic mold opening, automatic fall, automatic exhaust, automatic pressure compensation, automatic timing, and alarm when the time comes.
