Qingdao Yahua Machinery Co., Ltd

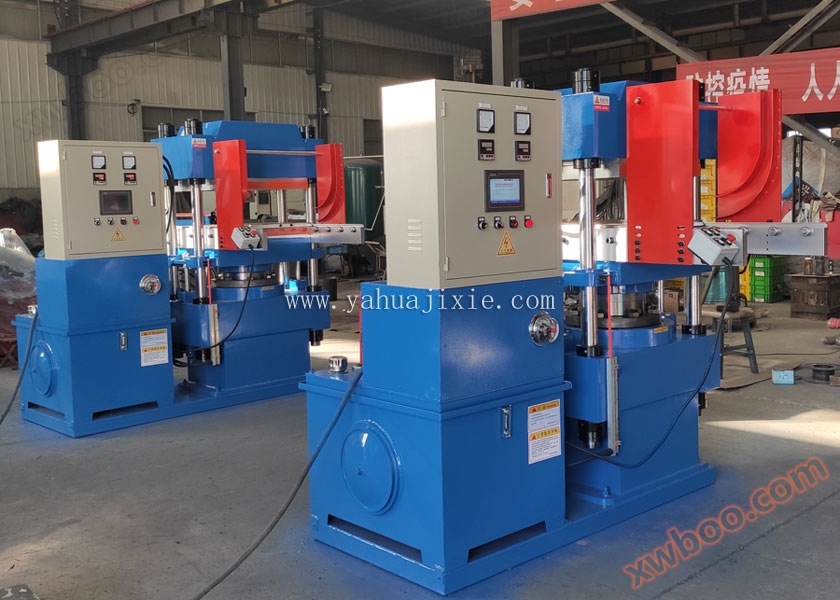

120TPLC control with automatic push-pull mold device/lifting mold track
NegotiableUpdate on 03/12
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
Main technical parameters of the product: various indicators, technical parameters, remarks, nominal clamping force 1
Product Details
Main technical parameters of the product:
| Various indicators |
Technical Specifications |
Remarks |
| Nominal clamping force |
1.20MN |

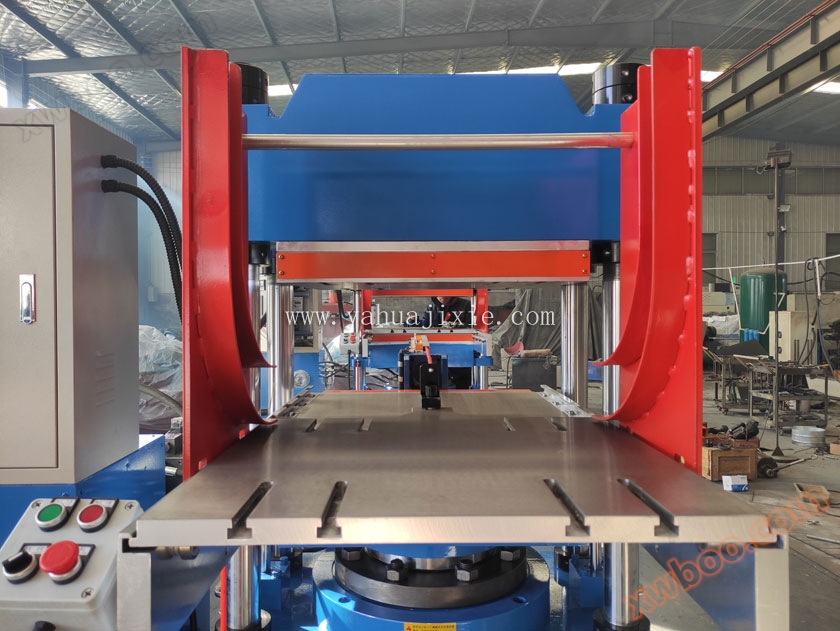

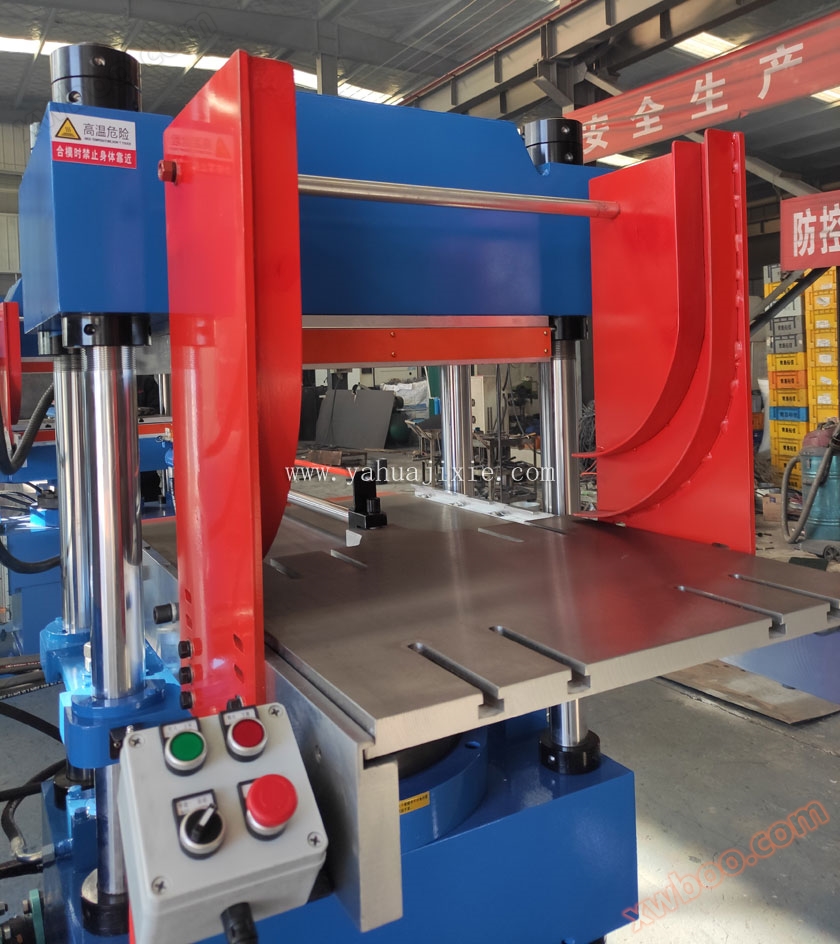

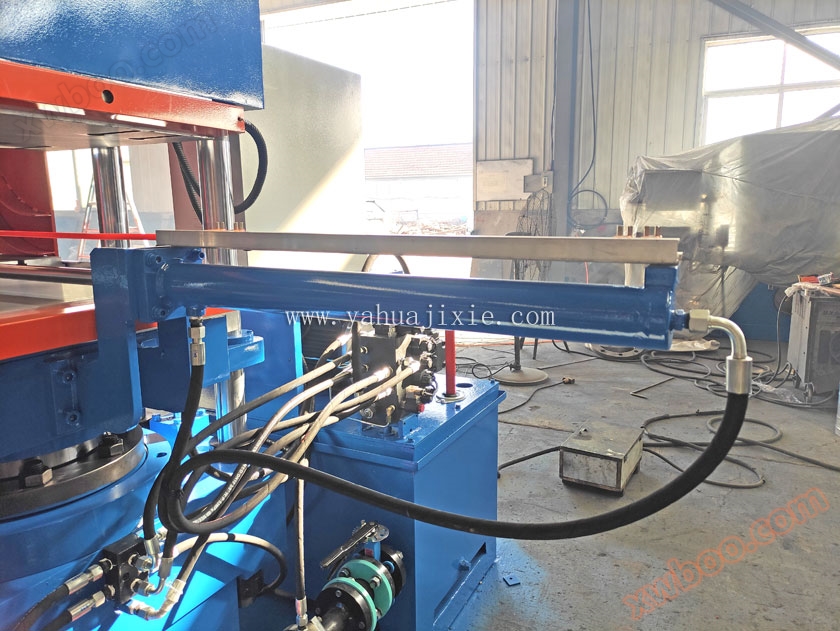

Equipped with an automatic mold entry and exit device and a mold lifting track. |
| Hot plate spacing |
250mm |
|
| Hot plate specifications |
750*550*57mm |
|
| Parallelism of hot plate |
＜0.15mm |
Lead pressure testing |
| Diameter and quantity of oil cylinders |
Φ 320mm * 1 set |
Oil cylinder made of ductile iron material |
| Unit area pressure |
29kg/cm2 |
|
| Effective stroke of plunger |
250mm |
|
| Maximum pressure of working fluid |
15.0Mpa |
|
| Heating method |
Electric heating, with a maximum operating temperature of 200 ℃ |
|
| Total heating power |
12.6KW |
|

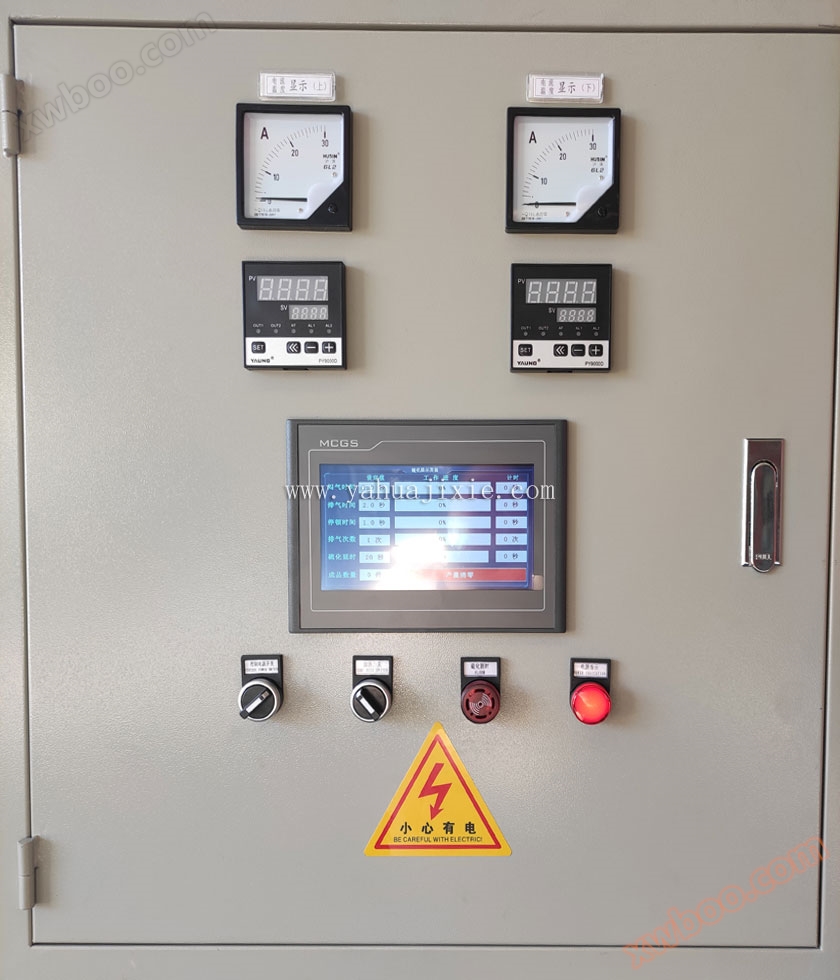

| Control method | PLC fully automatic control, template automatic closing and rising, mold opening and falling, adjustable exhaust frequency and exhaust time Functions such as segmented exhaust, automatic vulcanization timing, and automatic pressure compensation. |
|
| Number of working layers and heating plates |
One layer, two pieces |
|
| structural style |

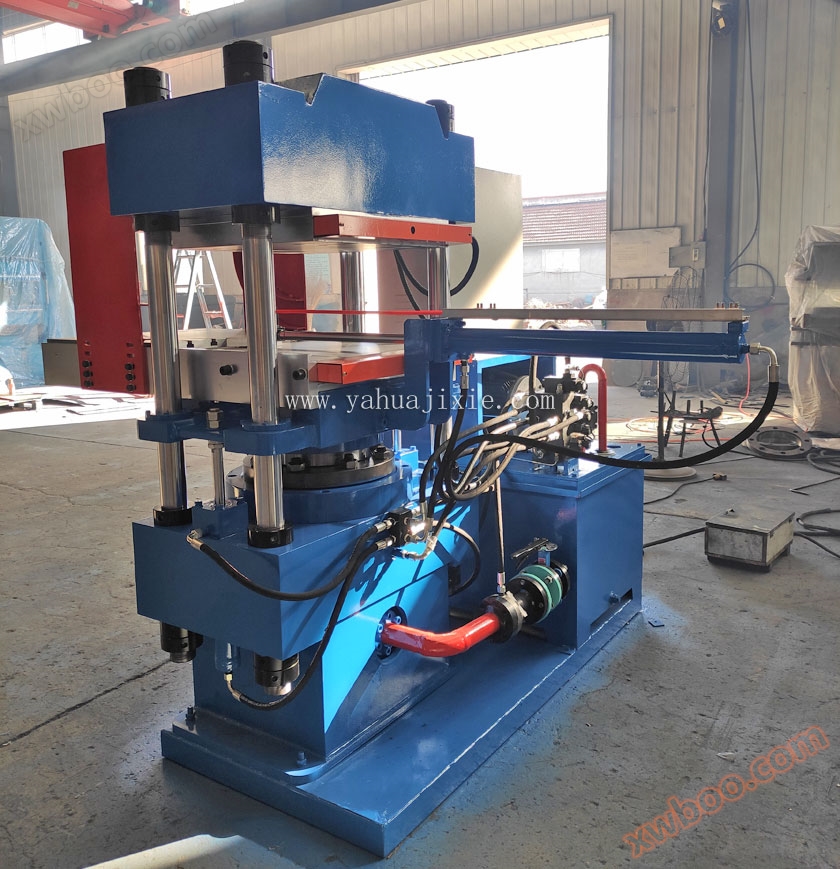

Four column structure |
|
| Column material and specifications |
45 chrome plated, with a diameter of 75 |
|
| Motor power |
3KW |
|
| Sealing method and oil seal material |
The main oil cylinder adopts a double sealed structure, and the oil seal material is polyurethane. |
|
| Brands used for hydraulic pumps, valves, etc |
Electromagnetic valve Taiwan Oil Power, pump Zhejiang Yongtai. |
