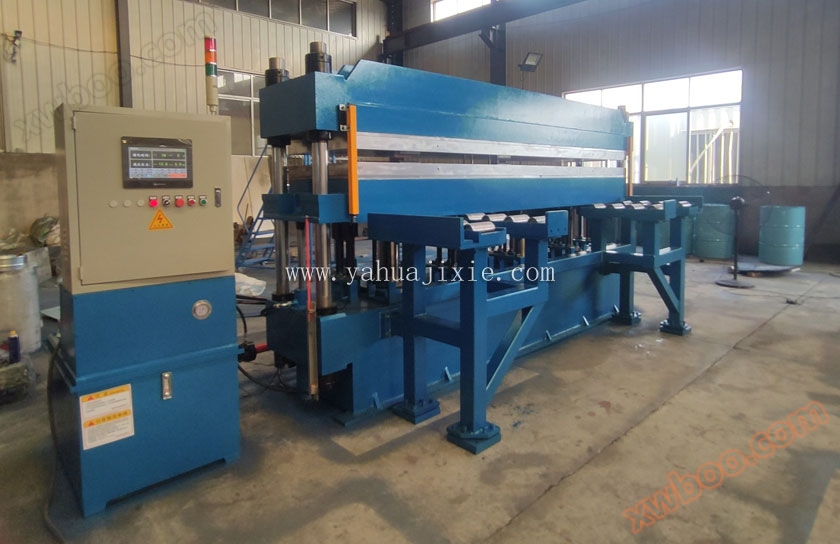

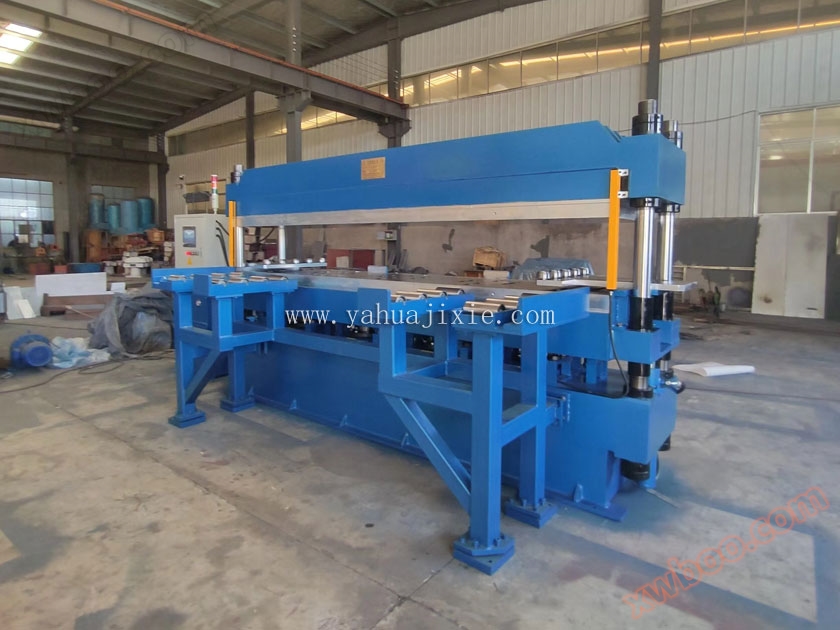

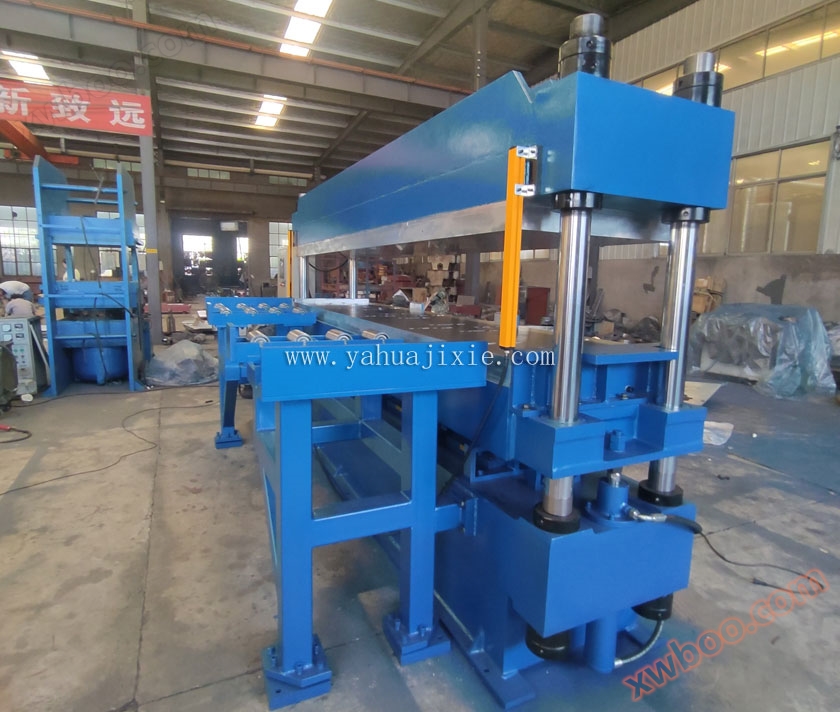

100T hot oil heating vulcanizing machine

Main technical parameters:
1. Nominal clamping force: 1.00MN
2. Maximum pressure of working fluid: 13.8MPa
3. Maximum stroke of plunger: 400mm
4. Hot plate area: 3300 × 700 (mm)
5. Unit area pressure of hot plate: 0.43MPa
6. Number of working floors: 1 floor
7. Hot plate spacing: 400mm
8. Oil cylinder diameter: 152mm
9. Number of oil cylinders: 4 pieces per unit
10. Electric motor: 5.5KW
11. Heating method: Heat transfer oil heating
12. Structural Form: Column Structure
13. Control method: PLC control

Equipped with safety grating device
