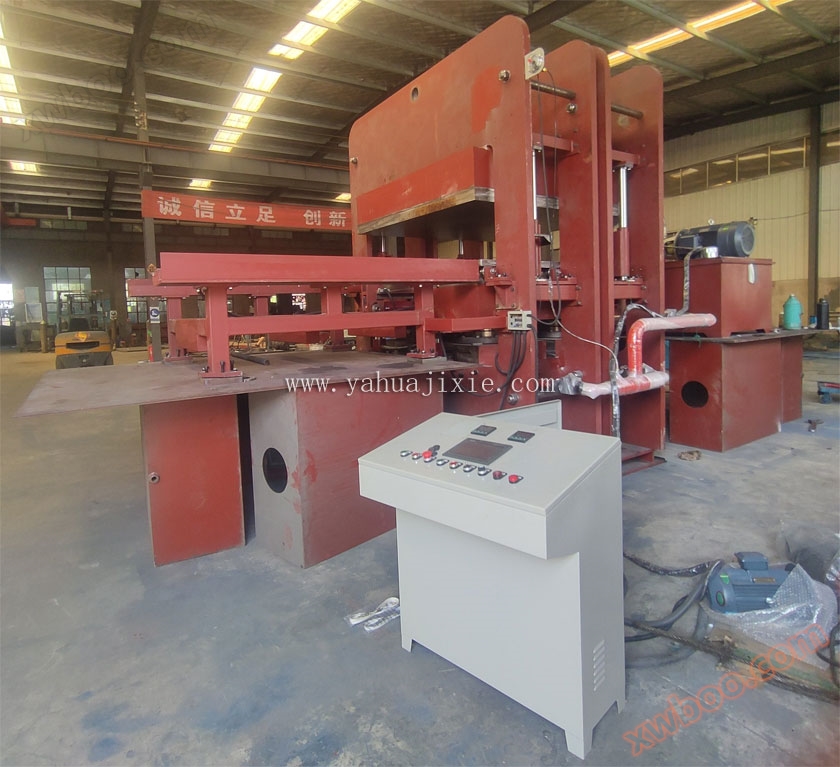

1000T thermal oil heating belt automatic push-pull mold vulcanizing machine

Main technical parameters of the product:
1. Nominal clamping force ..................................10.00MN
2. Maximum stroke of plunger ..........................400mm
3. Hot plate spacing ....................................400mm
4. Hot plate specifications .............................1800*1800（mm）
5. Work levels Layer 1
6. Maximum working fluid pressure .............................15.7Mpa
7. Unit area pressure of hot plate ..........................3.1Mpa
8. Total electric motor power ...............................6-22KW
11. Cylinder diameter ..................................450mm
12. Number of oil cylinders 4 sets/unit
13. Structural form Frame structure
14. Control method PLC control
15. Heating method Heat transfer oil with automatic push-pull mold device
