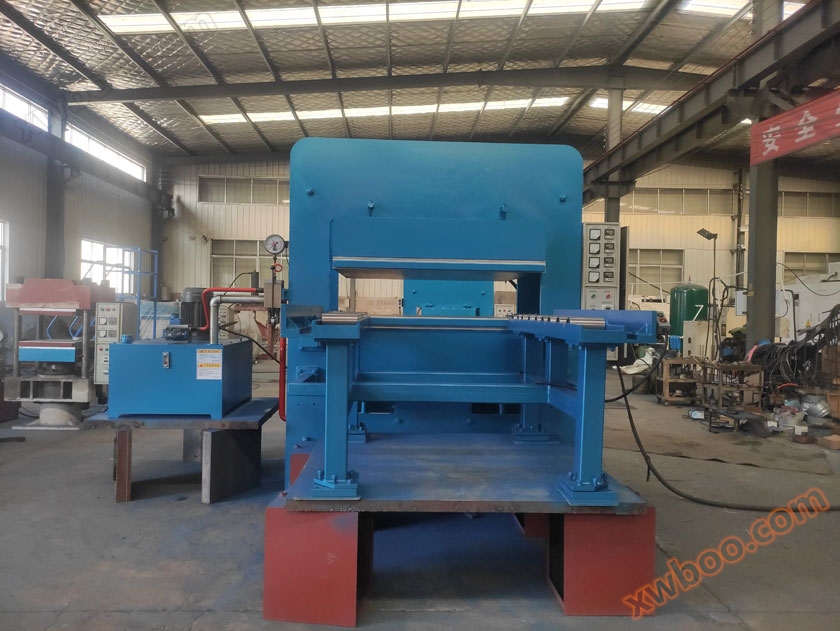

250T frame vulcanizing machine

Main technical parameters of the product:
1. Nominal clamping force: 2.50MN
2. Maximum pressure of working fluid: 15.7MPa
3. Maximum stroke of plunger: 250mm
4. Hot plate area: 1500 × 1500 (mm)
5. Unit area pressure of hot plate: 1.1MPa
6. Number of working floors: 1 floor
7. Hot plate spacing: 250mm
8. Piston diameter: 450mm
9. Single layer hot plate heating power: 21.6KW
10. Total heating power: 43.2KW
11. The maximum working temperature of the hot plate is 200 ℃
12. Electric motor 4 KW
13. Heating Method: Electric Heating
14. Structural Form: Frame Structure
15. Control Method: Manual Control
