200T fully automatic push-pull mold vulcanizing machine

Lower layer with automatic push-pull mold device, upper layer with manual push-pull mold device

Double layer with strong opening and automatic ejection function

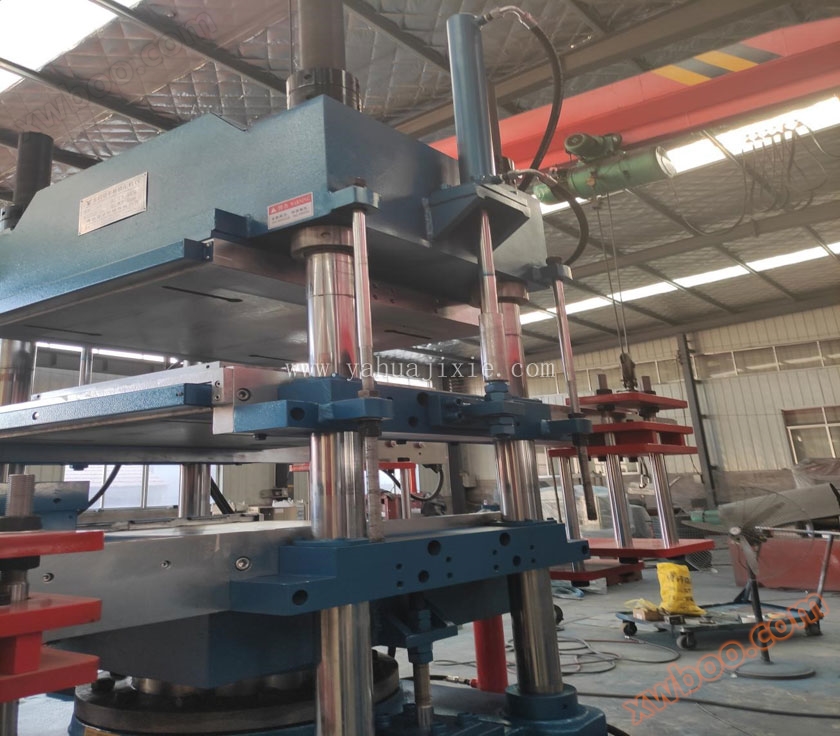

T-slot

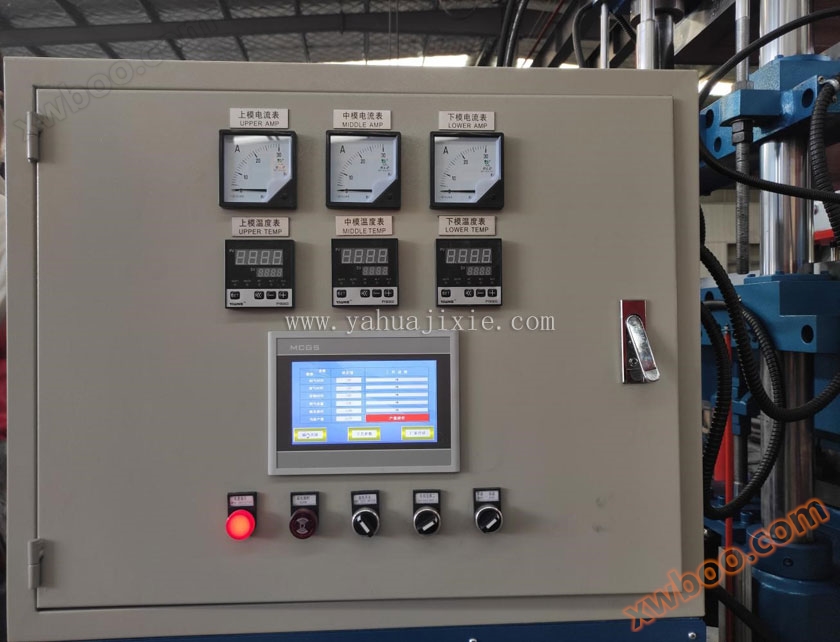

PLC+touch screen

Main product technical parameters:
1. Nominal clamping force: 2.00MN
2. Maximum pressure of working fluid: 16.0MPa
3. Maximum stroke of plunger: 400mm
4. Hot plate area: 800 × 800 (mm)
5. Unit area pressure of hot plate: 3.1MPa
6. Number of working floors: 2 floors
7. Hot plate spacing: 250-400mm
8. Piston diameter: 400mm
9. Number of oil cylinders: 1 set/unit
9. Single layer hot plate heating power: 7.2KW
10. Total heating power: 21.6KW
11. Maximum working temperature of hot plate: 200 ℃
12. Electric motor: 6-4KW
13. Heating method: electric heating
14. Structural form: Four column structure
15. Control mode: PLC fully automatic control
