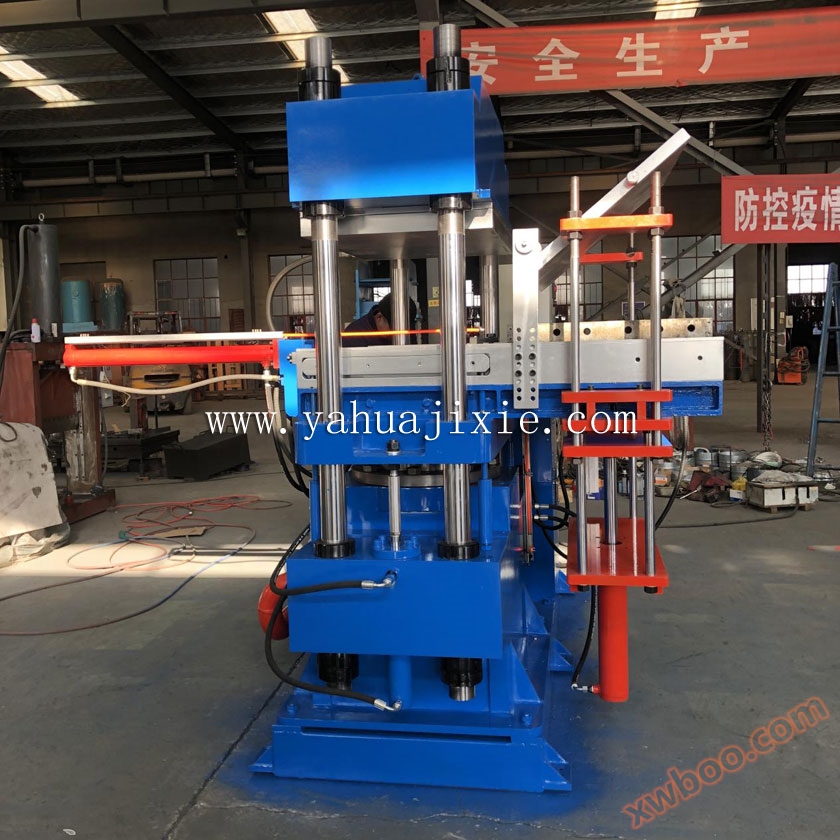

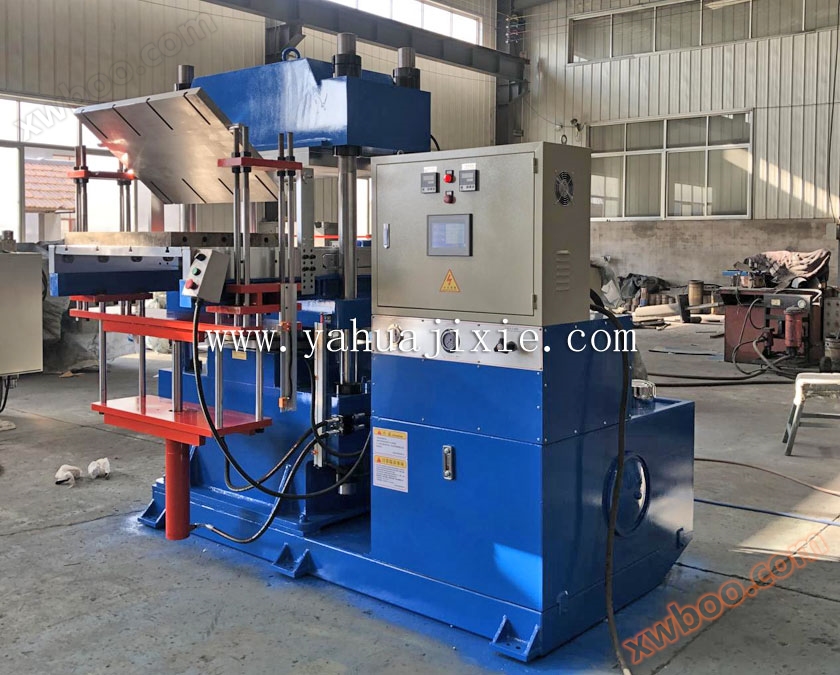

200T 2RT PLC fully automatic vulcanizing machine

Technical Specifications:

1、 Main technical parameters of the product:
1. Nominal clamping force: 2.00MN
2. Maximum pressure of working fluid: 15.9MPa
3. Maximum stroke of plunger: 300mm
4. Hot plate area: 900 × 600 (mm)
5. Unit area pressure of hot plate: 3.7MPa
6. Number of working floors: 1 floor
7. Hot plate spacing ............300mm
8. Piston diameter: 400mm
9. Number of plungers 1 set/unit
10. Heating method: Heat transfer oil heating
11. Structural form: Four column structure
12. Control mode: PLC automatic control
2、 This machine has the advantages of automatic rising, automatic mold opening, automatic falling, automatic exhaust, automatic pressure compensation, automatic timing, alarm when the time is up, automatic pushing out, automatic flipping, etc

PLC control+touch screen

Equipped with an automatic push-pull mold device, the mold can be automatically pushed out

Equipped with a replica device
