XPE and IXPE foam sheet production lines

NegotiableUpdate on 01/12

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

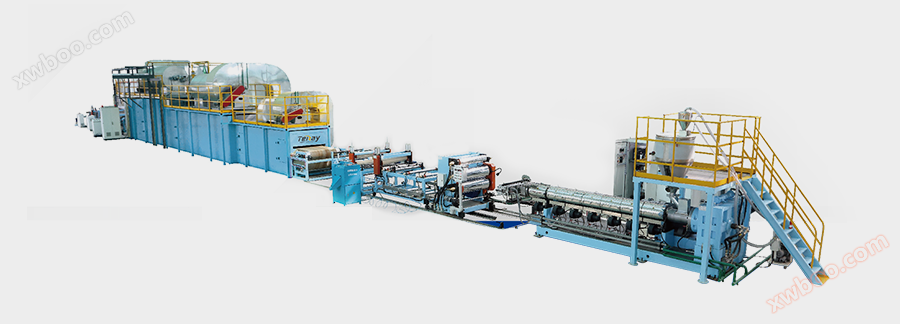

XPE and IXPE foam sheet production lines

Product Details

Main Technical Parameters TableMain Technical Specification

Extruder	TY105	TY150	TY160
Screw diameter (mm)	Φ105	Φ150	Φ160
Length to diameter ratio L/D	28:1	28:1	28:1
Screw speed R/min	10-30	10-30	10-30
Foaming times	5-35	5-42	5-42
Cooling method	Water cooling+air cooling Water/Wind cooling	Water cooling+air cooling Water/Wind cooling	Water cooling+air cooling Water/Wind cooling
Maximum Capacity (Max) Kg/H	100	200	250
Product width (mm)	1000-1500	1000-2200	1000-2200
Product thickness (mm)	0.5-5	3-18	3-18
Installed power Total power (kw)	250	300	350

XPE and IXPE polyethylene cross-linked foam sheets have many advantages such as water and moisture resistance, shock resistance, sound insulation, thermal insulation, good plasticity, strong toughness, environmental protection, and strong impact resistance. Compared with other traditional foam materials (such as EPE, EVA, etc.), they have higher tensile strength, stronger secondary processing performance, environmental protection and odorless properties, and can be composite with various materials. Widely used in industries such as automotive, construction, packaging, sports, transportation, and children's products.
