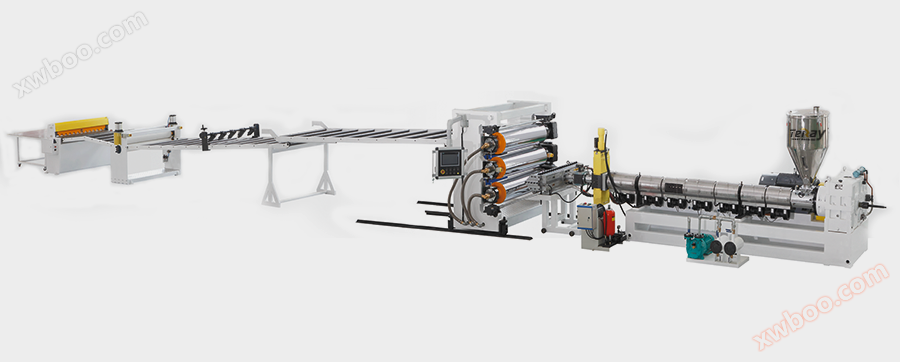

ABS/TPO/EVA/EPDM/PP/PE board sheet production line

Product Details

ABS car interior/luggage board:

There are leather grain boards, matte leather grain boards, flame-retardant leather grain boards, etc. Has good thermoplasticity, flame retardancy, and high impact resistance. Usage: Car and bus roof, dashboard; Door panels, window frames, motorcycle shells; Various luggage such as suitcases, casual bags, etc.

TPO/EVA/EPDM:

Resistant to aging, water, corrosion, UV radiation, good flexibility, and long service life, it is widely used in automotive sealing strips, sound insulation and shock pads, car trunk, mudguard, interior and exterior decoration accessories, etc.

PP/PE:

A new type of waterproofing membrane in the polymer series, characterized by high tensile strength, good elongation, minimal thermal shrinkage, and high elasticity and impermeability, is a high-performance waterproofing membrane. Widely used in industrial sulfuric acid tank lining, subway, culvert, basement, roof, railway bridge deck waterproofing, garbage filling engineering anti-seepage, tunnel waterproofing, and geogrid, etc.

Main Technical Specifications

Model number	TY-120/60/45-1800	TY-130/70/60-1800
Applicable raw materials	ABS/TPO/EVA/EPDM/PP/PE	ABS/TPO/EVA/EPDM/PP/PE
Extruder specifications	Φ120/38，Φ60/35，Φ45/35	Φ130/38，Φ70/35，Φ60/35
Co extruded layered form Layer Structure	A/B/C，A/B/A，A/B	A/B/C，A/B/A，A/B
Product Width	1200-1800mm	1600-2100mm
Product thickness	1-6mm	2-8mm
Maximum extrusion capacity	550kg/H	750kg/H
