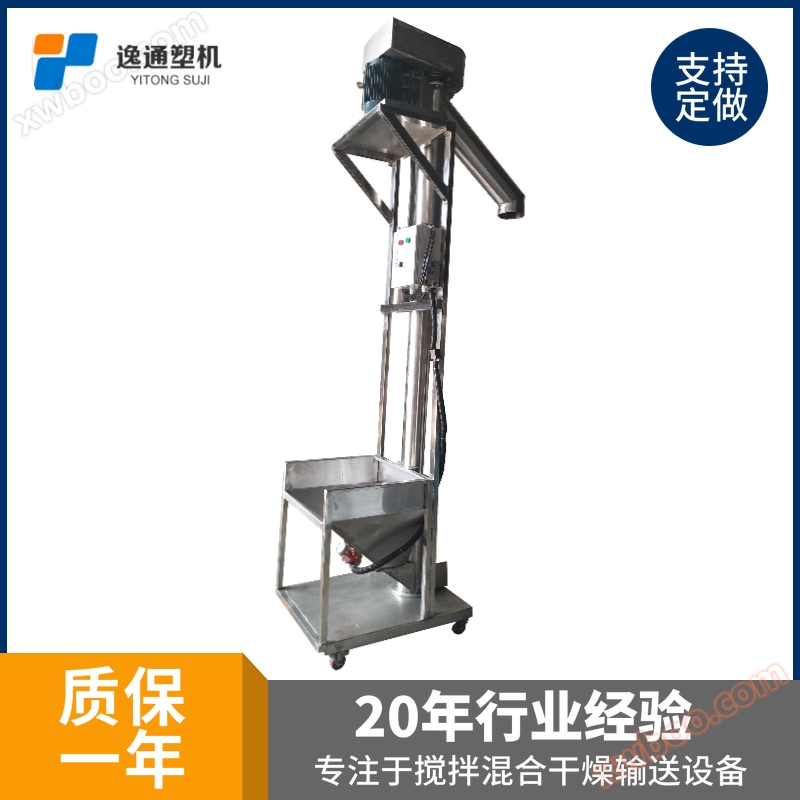

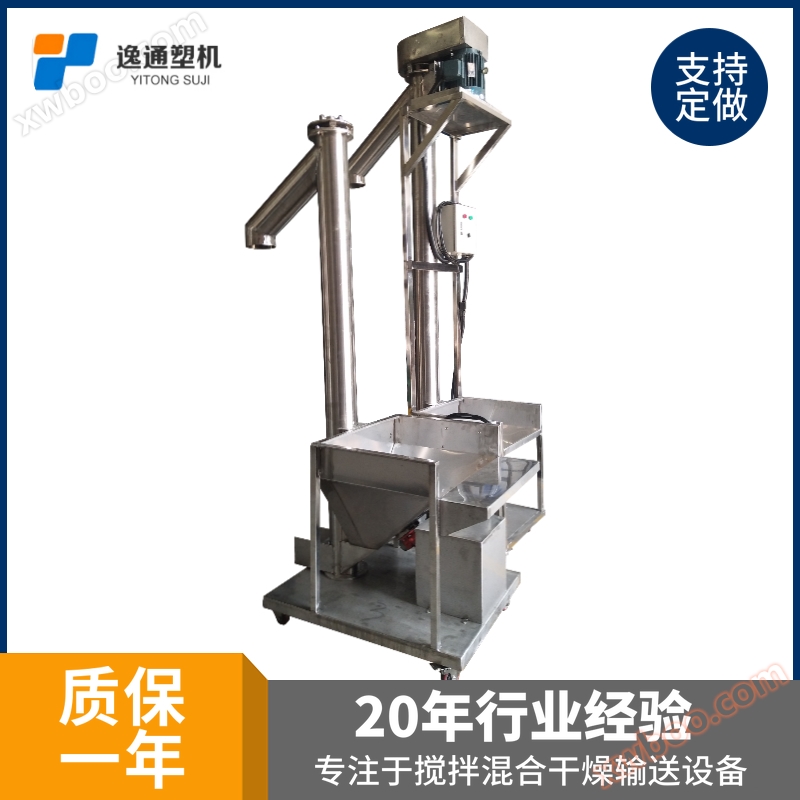

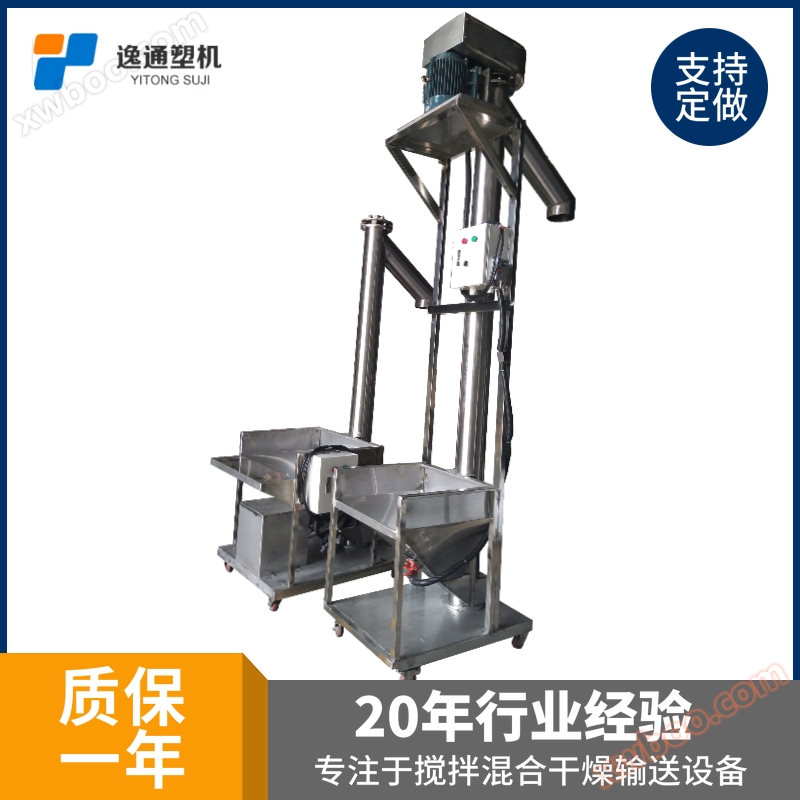

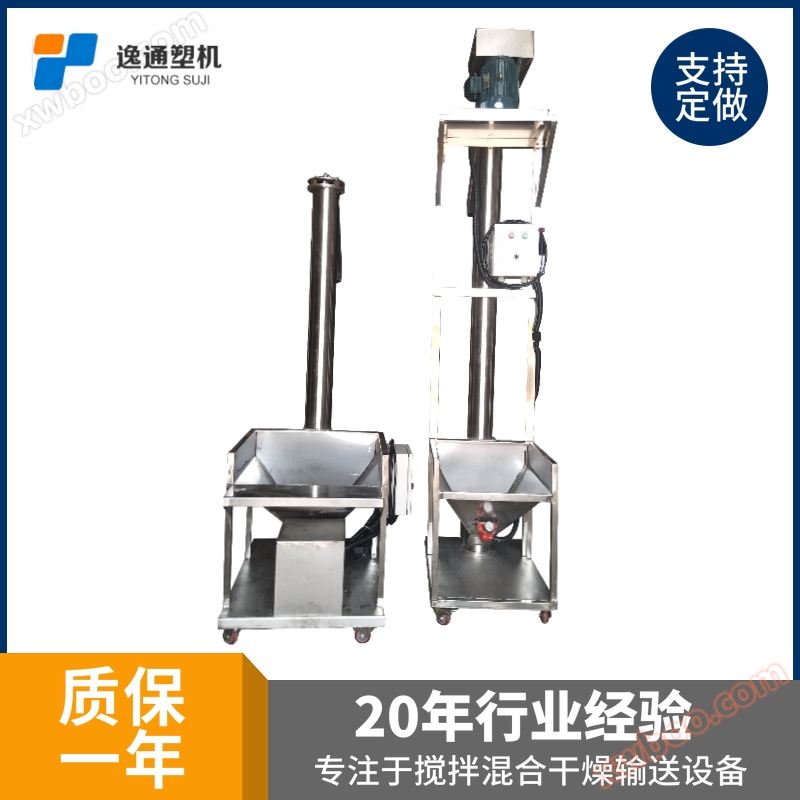

Vertical spiral conveyor feeding machine, fully automatic stainless steel spiral feeding machine, three speed selection switch, forward and reverse rotation, easy and clean cleaning

Dear new and old customers, are you still worried about not being able to hire workers and the difficulty of managing them? Our company has developed several feeding machines suitable forThe feeding machine for food, chemical, and plastic powders has minimal residue and low noise, with an hourly conveying capacity of up to5T. The pipe diameter varies in sizes such as 127, 133, 159, 168, 219, etc., and the size of the pipe diameter is ordered according to the customer's hourly feeding volume, so the price is also different.Guangzhou Yitong Plastic MachineryHaving design engineers3, number of advanced technical welders10Name. Say it and do it! Always prioritize integrity! We are cheaper than others for the same quality, at the same price, we are cheaper than others, at the same price, we are of better quality than others! Welcome for on-site inspection!

Characteristics of the feeding machine:

1. Specially designed and manufactured for the plastic and powder production and processing industries, this machine is made entirely of stainless steel for the parts in contact with materials;
2. Can be used in conjunction with various specifications of extruders, high-speed mixers, and plastic mixers;
3. Widely applicable for the loading (delivery) of various powder, granular, recycled and crushed materials.
4. This series of models can reach a single machine feeding height of 2-5 meters and can be used in series with multiple machines, with a feeding speed of 1-3 tons per hour.
5. It has the advantages of stable performance, easy maintenance, safety and reliability, and labor-saving.
6. Complete variety, diverse styles, with vertical feeding function, occupying less space
7. High degree of mechanical automation, automatic material filling, and adjustable material usage time.

Configuration and differences of feeding machine:

1. All parts of the machine that come into contact with materials are made of 201 stainless steel, with a length design range of 1 meter to 12 meters, and can be customized according to customer materials and requirements. The minimum feeding diameter is 127mm or more, and the minimum hourly conveying capacity is 800KG. The power of the spindle motor depends on customer requirements and material selection.

2. The distance between the inner wall of the stainless steel feeding tube and the spiral blade is not more than 3mm. The spiral blade is laser cut and processed, and all welding joints are polished to achieve smoothness and no residual material.
3. The speed of conveying materials ranges from 100KG to over 15 tons per hour.

4. Adopting imported universal bearings for heat insulation and dust prevention design, the feeding machine is equipped with Taiwan imported oil seals at both ends to ensure that dust and debris enter the bearings, achieving the purpose of durability.

5. Scientific design: The spiral shaft adopts stainless steel seamless tube, which is calibrated by lathe to ensure concentricity and stable machine operation. All blades are made of stainless steel material, and the blades are made of thickened stainless steel blades.
6. The bottom is designed with a material cleaning port. If material replacement is required, only a small amount of residual material can be removed by blowing it down with an air gun. And a safety switch is designed at the material cleaning outlet, which will cut off power once the cleaning door is opened, ensuring safety and reliability.
7. The circuit is designed for overload protection, effectively protecting the motor from burning out and ensuring durability. It has the function of stopping when the material is full and without automatic material extraction. Just set the material usage time, no need for workers to take care of it.

Technical parameters of the feeding machine

Usage of feeding machine:Suitable for industries such as plastics, electronics, food, chemicals, hotels, etc. It can be customized according to the customer's usage requirements and size.

Yitong after-sales service:

1Installation and commissioning: After the equipment is delivered, our company will provide free guidance to a dedicated person for the installation and commissioning of the equipment;

2Warranty period: The equipment sold by our company has a free warranty period of one year (excluding vulnerable parts). During the warranty period, spare parts replacement and repair are provided free of charge. However, any abnormal damage to the equipment is not covered by the warranty, and the buyer should pay for the replacement of spare parts;

3Outside the warranty period: Free of charge. If the equipment is damaged, the buyer shall pay for the replacement parts (priced according to the material procurement cost);

4Service time commitment: In case of machine malfunction during equipment use, the user department should cut off the power and notify our service department orally or in writing. Upon receiving the notification, our service department will24Submit a solution within hours and notify the buyer;

5Adequate parts inventory: Our company aims to reduce the cost of customer parts inventory and provide better and faster services;
