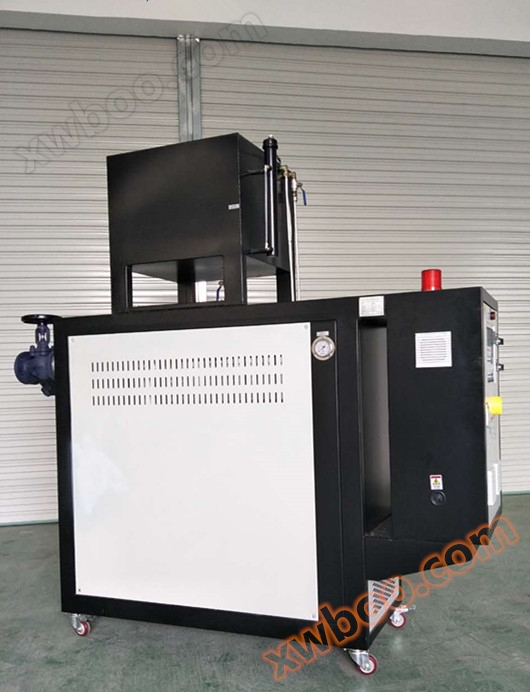

Thermal oil circulation temperature control system

Thermal oil circulation temperature control systemConstant temperature equipment machines are widely used in industrial and mining enterprises, and users have increasingly high requirements for product quality. Many products require temperature control during the molding process, and these machines generally have a rapid cooling function to keep the temperature within an appropriate range. It mainly consists of four parts: the complete machine frame, pump, heating tube, temperature controller, and electrical appliances. These four parts are also the key to the quality of a thermal oil circulation temperature control machine. Introduction to the functional models of the Kolode model temperature control machine:

The water temperature heating power is 3KW-60KW, and the temperature can be customized at room temperature or minus 120 ℃

The oil heating power is 6KW-75KW, and the temperature ranges from 30 ℃ to 200 ℃

High temperature water heating series with a power range of 9KW-30KW and a temperature range of -180 ℃ at room temperature

High temperature heat transfer oil heating series with a power of 12KW-96KW and a temperature range of 250 ℃ -320 ℃

1. Using original hot oil pump, reliable quality, few faults, and stable operation.

2. Taiwan imported microcomputer controller, easy to operate and save over 40% electricity.

3. The safety protection and fault indication system is complete.

4. The electric control box and the body are isolated, with excellent insulation effect, which can extend the service life of electrical components.

5. The temperature rise and fall speed is fast, the temperature is precise and stable, the temperature value is accurate within ± 0.3 ℃, and it prevents the deterioration of the heat medium oil.

6. Unique heating design, suitable for use in different temperature controlled places, with significant energy-saving effects.

7. The pipeline is integrally formed with minimal pipe damage.

8. Automatic exhaust function upon startup.

9. Return oil or return water temperature detection table.

10. Special models, dual machine integrated or multi machine integrated models, can be customized.

Characteristics of Thermal Oil Circulation Temperature Control System

The isolated electrical control box designed by Kolode Precision Machinery extends the service life of electrical appliances, and the hot oil BY-PASS pressure relief circuit realizes automated management. High temperature control accuracy, fast thermal conductivity, fast temperature rise and fall speed, uniform and stable temperature, efficient and energy-saving. Heating power switching function, multi-point temperature control unit can be customized. Configuration and Features: Temperature Control Accuracy ± 0.3 ℃, Operating Temperature 320 ℃:

Thermal oil circulation temperature control systemThe thermostat adopts British and Italian brand (P.I.D.) touch mode internal storage and automatic calculation.

guideHot oil temperature circulation control systemofThe above specifications are subject to change without prior notice, and special specifications may be designed and modified separately. The specifications above are subject to change without notice,Some special spspecifications may be customized.
