Hydraulic press thermal oil heating furnace

NegotiableUpdate on 04/24

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

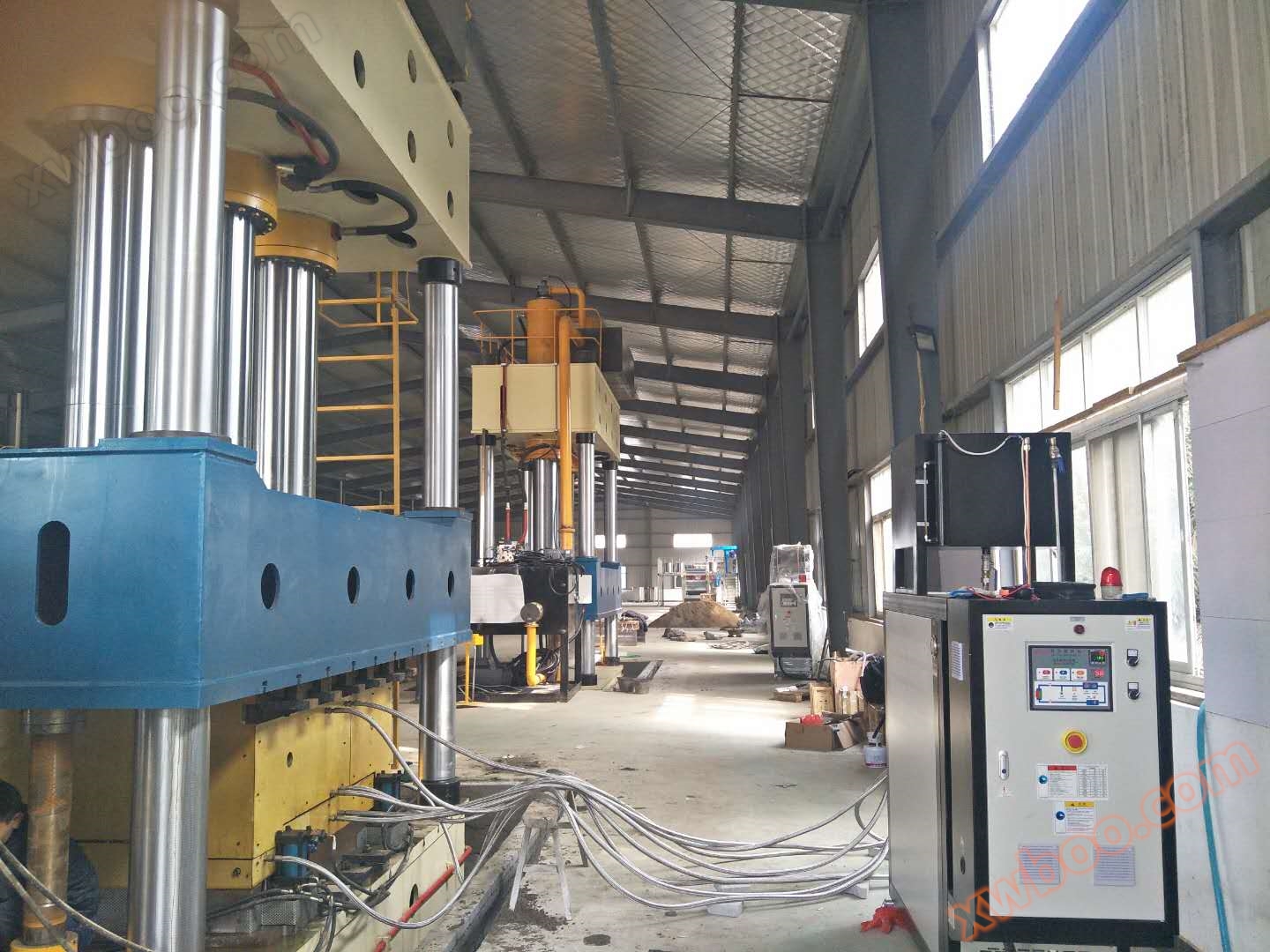

Hydraulic press thermal oil heating furnace, mold heater can be used for hydraulic hot pressing of automotive parts, automotive carpets, roof hot pressing constant temperature heating, automotive interior system hot pressing, hydraulic forming high-temperature oil circulation mold temperature machine, vulcanizing machine hydraulic forming machine mold heating, rubber vulcanization hydraulic forming machine mold temperature control, laminated plate oil circulation heating, flat plate vulcanizing machine heating, template temperature control, etc

Product Details

Hydraulic press thermal oil heating furnaceMold heaters can be used for hydraulic hot pressing of automotive parts, automotive carpets, roof hot pressing constant temperature heating, automotive interior system hot pressing, hydraulic forming high-temperature oil circulation mold temperature machine, vulcanizing machine hydraulic forming machine mold heating, rubber vulcanizing hydraulic forming machine mold temperature control, laminated plate oil circulation heating, flat vulcanizing machine heating, template temperature control, etc.

Our company strives for excellence and continuous innovation in temperature control technology. The water temperature machine of this series of products has reached 180 ℃, and the heat transfer oil heating furnace has reached 350 ℃. Among them, the ultra-high temperature oil temperature machine is the first in China to use full negative pressure oil return operation technology, greatly improving the safety of equipment and operators. It can completely replace imported equipment, reducing equipment costs for customers and creating better economic benefits. In various temperature control fields such as plastics, electroplating, electronics, chemicals, printing, food processing, etc

Hydraulic press thermal oil heating furnacecharacteristic:

Pipeline device

Blow back oil function

Return oil temperature display table

Automatic exhaust function upon startup

Heating power switching function

Negative pressure system operation (optional)

RS485 communication function for automated management (optional)

Instant cooling shutdown function (optional)

Isolation type electrical control box, extending the service life of electrical appliances

Hot oil BY-PASS pressure relief circuit

Multi point temperature control unit can be customized

Oil pump horsepower and heating power can be customized

电器采用 OMRON. FUJI. TE. LG.

Temperature control range: Inlet water temperature+25 ℃ → 350 ℃

304 stainless steel integrated pipeline, reducing pipe resistance and rust scale

Control method:Hydraulic press thermal oil heating furnaceAdopting imported microcomputer or (optional) PLC control

model	Model	unitUnit	JFOT-30	JFOT-40	JFOT-50	JFOT-75	JFOT-10
Temperature control range	TempRange	℃	room temperature-300℃Normal temperature-300℃
Temperature control accuracy	Temp.Control Accuracy		PID±1℃
power supply	Power Supply		AC3∮380V 50HZ3P+E（5M）
Heat transfer media	Heat Transfer Medium		heat transfer oilHeat Conducting Qil
cooling method	Cooling Method		Indirect coolingIndirect Cooling
heating power	Heating Capacity	KW	18/24/30	36/48	45/50	60/75	80/90
pump power	Pump Power	KW	2.2	3.0	4.0	5.5	7.5
Pump flow rate	Pump Folw	M3/H	10	12.5	16	12.5(18)	25(30)
Pump Pressure	Pump Pressure	KG/CM2	2	2.5	3	3	3.5
electricity consume	Power Supply	KW	27/39	39/51	47/64	66/81	98
safetyfunction	Alert Function		phase loss/oil starvation/overtemperature/overload/undervoltagePump Reversal/Oil Shortage/Overheating/Overload/Overflow
冷却水配管	Cooling Water Pipe	INCH	1/2	1/2	1/2	1/2	3/4
Circulating oil piping	Circulati Onwater Pipe	INCH	1	1-1/4	1-1/4	1-1/2	2
Overall dimensions	Size(LWH)	MM	1350500 1000	1400550 1200	1400550 1300	1600600 1400	1750650 1500
weight	Weight	KG	190	260	300	370	430
