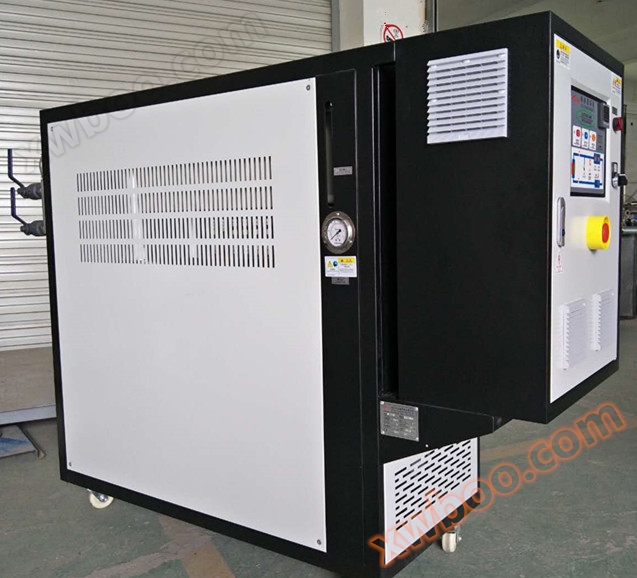

Thermal oil circulating electric heating furnace

NegotiableUpdate on 04/24

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

The thermal oil circulation electric heating furnace, electric heating oil temperature control machine and other equipment are carefully developed products by Kolode Company. This temperature control system is used in foaming machines such as sponges, EVA， Rubber foam products, laminated board molds, hot melt adhesive coating industry, aluminum-plastic panel roller production line, non-woven fabric equipment, automotive interior parts press machines such as ceiling products, foot mats, seat cushions, and sound insulation pads, laser film press machines, automotive tire vulcanizing machines for template heating use

Product Details

The thermal oil circulation electric heating furnace, electric heating oil temperature control machine and other equipment are carefully developed products by Kolode Company. This temperature control system is used in foaming machines such as sponges, EVA， Rubber foam products, laminated board molds, hot melt adhesive coating industry, aluminum-plastic panel roller production line, non-woven fabric equipment, automotive interior parts press machines such as ceiling products, foot mats, seat cushions, and soundproofing pads, laser film press machines, and automotive tire vulcanizing machines for template heating.

Thermal oil circulating electric heating furnaceProduct advantages:

1Integrated molding process for pipeline systems.

2Blow back oil function (selection)

3The return oil temperature indicator clearly displays the temperature.

4Automatic exhaust function upon startup, heating power conversion.

5Operation of negative pressure system (selection)

6Hot oilBY-PASSPressure relief circuit to protect the pump in case of pipeline blockage.

7Cool down for 60 seconds and turn on the device. When there is pressure, it starts to heat up.

8Multi point temperature control unit can be customized

9Hot oil pump horsepower and heating power can be customized

10Electrical appliances are usedWESTTheLGSchneider, Siemens and other electrical components

11Temperature control range: Inlet oil temperature:+25℃-300℃

model	Model	unitUnit	JFOT-10	JFOT-30	JFOT-40	JFOT-50	JFOT-75
Temperature control range	TempRange	℃	room temperature-300℃
temperature control	Temp.Control Accuracy		±1℃
power supply	Power Supply		380V 50HZ
heating power	Heating Capacity	KW	18	24/36	36/48	48/60	60/75
pump power	Pump Power	KW	0.75	2.2	3.0	4.0	5.5
Pump flow rate	Pump Folw	M3/H	2	10	12.5	16	12.5(18)
Pump Pressure	Pump Pressure	KG/CM2	2	2.5	3.0	3.5	5.0(4.5)
electricity consume	Power Supply	KW	13	27/39	39/51	70	90
Circulating oil piping	Circulati Onwater Pipe	INCH	3/4	1	1-1/4	1-1/4	1-1/2
Overall dimensions	Size	MM	1350450 1300	1350450 1500	1600500 1650	1800550 1880	2000600 2050

For technical consultation and scheme selection of thermal oil circulation electric heating furnace and electric heating oil temperature control machine equipment, please call Kolode Machinery Company. Thermal oil is recommended for use in electronic materials, adhesive bonding, pharmaceutical/pesticide intermediates, copper-clad laminates, industrial coatings, synthetic resins, leather and rubber, petrochemicals, textile printing and dyeing industries that require high stability. It is particularly suitable for use in low-temperature cooling systems below -30 ℃.
