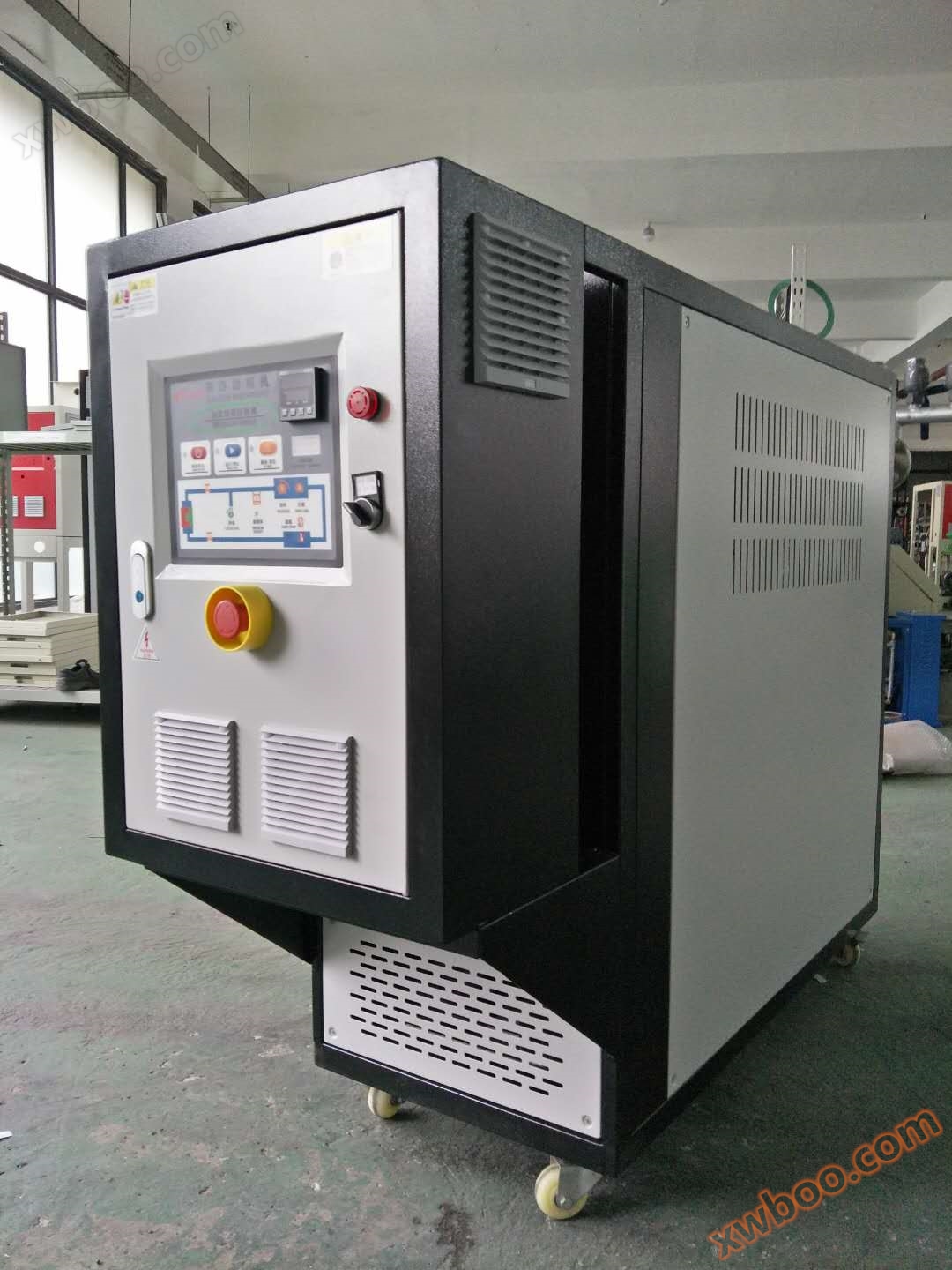

Temperature cycle control machine

The temperature circulation control machine, also known as the heat transfer oil heater or oil temperature control machine, is a water circulation heater. The heat medium is divided into two types: heat transfer oil and water. The former can be heated up to 300 degrees Celsius, while the latter can be heated up to 180 degrees Celsius. The advantage of an oil heater is that it can achieve high heating temperature at low pressure, while the latter needs to achieve high temperature, and the pressure will increase. Users can choose according to their actual situation.

1. Liquid water or oil can be used interchangeably:

According to the temperature requirements of the mold during molding, water or oil can be freely changed as the medium liquid, with high selectivity and economic benefits

2. European pump:

Adopting horizontal eddy current, pumping, stable flow rate, and long service life

3. Stainless steel water (oil) storage tank:

Adopting stainless steel water (oil) storage tank, plate heat exchanger cooling, and 304 stainless steel pipeline, long-term use will not cause pipeline blockage due to rusting inside the pipeline, which will affect the service life of the pump

4. Automatic warning device:

When there is an abnormal lack of water or oil medium, the warning light will light up and automatically sound an alarm, while automatically cutting off the electric heating and pump power supply to stop running

5. High precision temperature automatic control:

The temperature response is rapid, the temperature change is small, the molded product is delicate and glossy, and there are no burrs

6. Temperature cycle control machine reduces the defect rate of molded products:

Preheat before molding, start the operation, and the mold immediately reaches the required temperature, greatly reducing the defect rate of molded products

7. Maintain appropriate temperature:

Continuous operation or brief shutdown, the mold always maintains an appropriate temperature, enhances the rationalization of molding operations, and makes the molding quality more perfect

8. Small size and light weight:

Easy to install, easy to operate, easy to move, and does not take up space. Product features of temperature cycling control machine:

1. Pipeline explosion-proof device

2. Blow back oil function (optional)

3. Return oil temperature display table

4. Automatic exhaust function upon startup

5. Heating power switching function

6. Negative pressure system operation (optional)

7. Instant cooling shutdown function

8. Isolated electrical control box, extending the service life of electrical appliances

9. RS485 communication function for automated management (optional)

10. Hot oil BY PASS pressure relief circuit

11. Multi point temperature control unit can be customized

12. Oil pump horsepower and heating power can be customized

13、 电器采用West. FUJI. TE. LG. MOELLER. ABB. WEST.

14. Temperature control range: normal temperature → 300 ℃

15. 304 stainless steel integrated pipeline, reducing pipe resistance and rust scale

16. Control method: Adopting imported microcomputer or (optional) PLC control

17. Complete safety protection, fault display, and maintenance. Maintenance does not require professional personnel

Temperature cycle control machine
