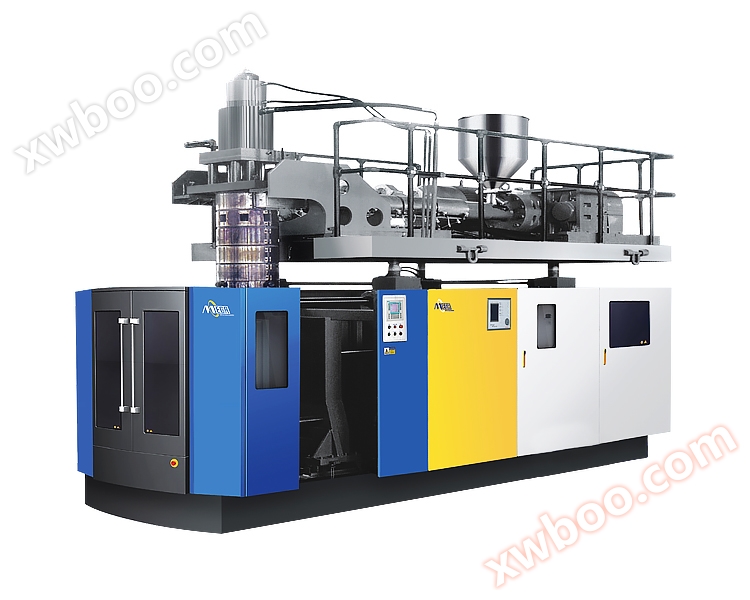

MG-SL storage type hollow forming machine

NegotiableUpdate on 04/18

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

MG-LS storage type hollow forming machine is used to produce various types of bags, buckets, hollow shaped parts, etc. The applicable materials include PE, PP, ABS, etc. The maximum capacity of the storage cylinder is 12L, and the capacity of the produced products can reach 120L. Its control system is a complete closed-loop control imported from Europe, and the hydraulic system is pressure and flow dual proportional control, equipped with a variable piston pump to ensure faster and more stable machine operation And it can reduce the energy consumption of the hydraulic system by more than 30%, with particularly significant energy-saving effects.

Product Details

brief introduction

Bottle sample

120L industrial container

180L industrial container

200L industrial container

Technical Parameter

model		MG-S25L	MG-S50L	MG-S80L	MG-S120L
Applicable raw materials		PE.PP…	PE.PP…	PE.PP…	PE.PP…
Theoretical yield	Pcs/h	600	450	360	360
Machine dimensions	M	4.1X2.2X2.5	4.5X2.4X3.8	5.4X2.5X3.9	5.2X2.5X4.2
Maximum product capacity	L	25	50	80	120
machine weight	T	11.5	12	16	17
Die head
Number of heating sections for the mold head	Zone	4	4	5	5
Heating power of mold head	KW	5.28	7.52	9.2	10.8
Opening and closing mechanism
clamping force	KN	215	260~400	440~600	440~650
Opening and closing stroke of the mold	MM	350~780	450~1000	500~1200	500~1400
Maximum size of mold	MM	550×650	700×950	800×1000	800×1250
mold thickness	MM	250-350	450-510	360-600	360-700
dynamical system
Oil pump motor power	KW	22	30	37	37
Screw motor power	KW	30	37	45-55	55
Screw fan power	KW	0.4	0.4	0.4	0.4
blowing pressure	MPA	0.8	0.8	0.8	0.8
Gas consumption	M3/MIN	0.8	1	1.2	1.6
Maximum total power	KW	68, 77	87, 103	108, 122	108, 142
Plasticization system
Screw diameter	MM	80	90	100	100
Draw Ratio of Screw	L/D	22~30	22~30	25~30	25~30
Extrusion amount	KG/H	100~120	140~200	180~250	200~280
Number of screw heating sections	ZONE	4	4	4~5	4~5
Screw heating power	KW	6.2~8.2	7.3~9.1	8.4~10.5	8.4~10.5

The above data is for reference only and will be continuously developed and improved. Any changes will not be notified separately.
