MG-SA2 M/L 半自动吹瓶机

NegotiableUpdate on 04/18
Model
Nature of the Manufacturer
Producers
Product Category
Place of Origin
Overview

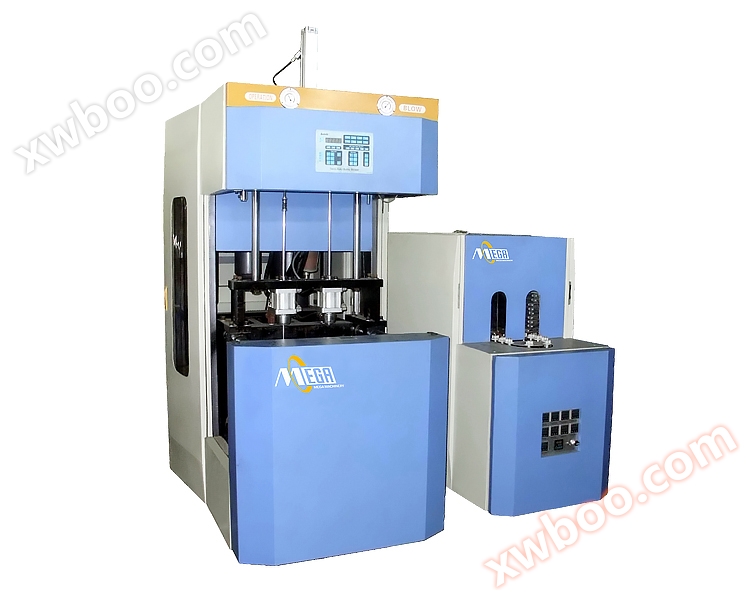

MG-SA2M semi-automatic bottle blowing machine is an economical semi-automatic bottle blowing machine specially designed for customers who need to blow small bottles. The machine is affordable, easy to operate, and safe. Only one worker is needed to complete all bottle blowing processes, and no special training is required. Controlled by a microcomputer, the technical parameters of the design can be more accurately controlled. MG-SA2M is loved by customers for its affordable price and excellent quality, and has been widely used by customers for blowing beverage bottles, cosmetic bottles, edible oil bottles and other products. The MG-SA2L semi-automatic bottle blowing machine is an updated and improved version of the MG-600 bottle blowing machine, which meets the requirements of high-pressure bottle blowing. This machine can blow up to 10L or even 12L of products. The machine is also controlled by a microcomputer, which can more accurately control the technical parameters of the design. The machine is easy to operate, safe, and only requires one worker to complete all blowing processes, without the need for special training. The MG-SA2L semi-automatic bottle blowing machine has been widely used by large and well-known edible oil companies at home and abroad, and is suitable for other medium specification packaging markets such as large capacity water bottles and medium packaging edible oil.
Product Details
brief introduction

MG-SA2M semi-automatic bottle blowing machine is an economical semi-automatic bottle blowing machine specially designed for customers who need to blow small bottles. The machine is affordable, easy to operate, and safe. Only one worker is needed to complete all bottle blowing processes, and no special training is required. Controlled by a microcomputer, the technical parameters of the design can be more accurately controlled. MG-SA2M is loved by customers for its affordable price and excellent quality, and has been widely used by customers for blowing beverage bottles, cosmetic bottles, edible oil bottles and other products.

The MG-SA2L semi-automatic bottle blowing machine is an updated and improved version of the MG-600 bottle blowing machine, which meets the requirements of high-pressure bottle blowing. This machine can blow up to 10L or even 12L of products. The machine is also controlled by a microcomputer, which can more accurately control the technical parameters of the design. The machine is easy to operate, safe, and only requires one worker to complete all blowing processes, without the need for special training. The MG-SA2L semi-automatic bottle blowing machine has been widely used by large and well-known edible oil companies at home and abroad, and is suitable for other medium specification packaging markets such as large capacity water bottles and medium packaging edible oil.

Technical Parameter
main information MG-SA2M MG-SA2L
Bottle Origin Science PET PET
clamping force 20T 38T
Mold opening itinerary 180mm 250mm
Maximum stretching stroke 400mm 450mm
Number of cavities 2 Cavity 2 Cavity
Theoretical yield 900 BPH 600-700 BPH
Maximum template area 490X400 mm 680X490 mm
Maximum mold thickness 110-230 mm 200-330 mm
Four pull rod inner distance 340X360 mm 480X480 mm
Power System
Standard voltage 380v/3PH/50Hz or special order 380v/3PH/50Hz or special order
Number of heating areas 2 Sections 4 Sections
total power 10KW 30KW
container
volume 2L 10L
Bottle mouth diameter 15-35 mm 25-50 mm
Bottle diameter 110 mm 210 mm
Maximum bottle height 360 mm 430 mm
Air system
Low pressure air compressor 8-10 Bar 8-10 Bar
High pressure air compressor 30 Bar 30 Bar
Air Dryer 1.2/30 2.0/30
Size, weight
Bottle blowing machine 1.2×0.59×1.5m 1.7×0.8×1.7m
oven 1.3×0.59×1.5m 2×0.61×1.5m
weight 0.8Ton 1.4Ton

The above parameters are subject to change without prior notice
