Taizhou Maige Machinery Mold Co., Ltd

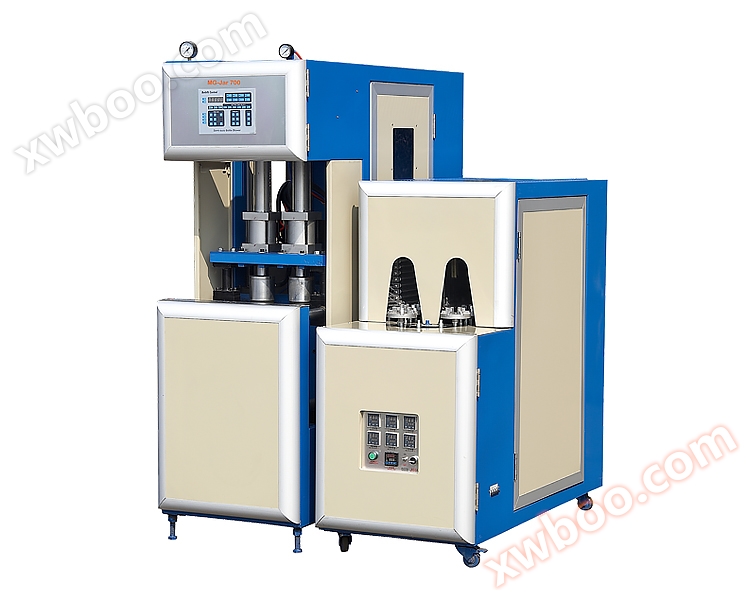

MG-Jar700 wide mouth bottle blowing machine
NegotiableUpdate on 04/18
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
The MG-Jar700 wide mouth bottle blowing machine is specifically designed for blowing PET wide mouth bottles of various diameters. The machine adopts a direct pressure sealing unit optimized for wide mouth bottle preforms, suitable for wide mouth bottle preforms of different diameters. Compared to traditional semi-automatic blow molding machines that use bottle preform conversion seats. The MG-Jar700 wide mouth bottle blowing machine has simple operation, high production efficiency, and better compatibility with different sizes of wide mouth bottle preforms.
Product Details
brief introduction
The MG-Jar700 wide mouth bottle blowing machine is specifically designed for blowing PET wide mouth bottles of various diameters. The machine adopts a direct pressure sealing unit optimized for wide mouth bottle preforms, suitable for wide mouth bottle preforms of different diameters. Compared to traditional semi-automatic blow molding machines that use bottle preform conversion seats. The MG-Jar700 wide mouth bottle blowing machine has simple operation, high production efficiency, and better compatibility with different sizes of wide mouth bottle preforms.
Machine features
- Capable of blowing wide mouthed bottles with a maximum diameter of 140mm
- A specialized sealing device designed for wide mouth bottles.
- Advanced microcomputer control system, lightweight panel, time control can be precise up to 0.01 seconds.
- The machine is equipped with a compressed gas stabilizing unit.
- Advanced rotary infrared heating oven.
- Adjustable heating lamp tube suitable for various bottle preforms.
- Independent temperature control in different heating lamps can achieve ideal heating results for bottle preforms

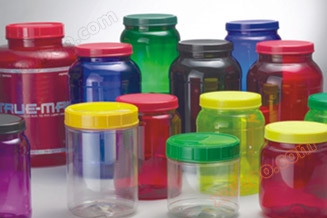

Bottle sample
Technical Parameter
| type | project | MG-Jar 700 |
|---|---|---|
| main information | clamping force | 20T |
| Closing stroke | 230mm | |
| Maximum stretching stroke | 380mm | |
| Number of cavities | 2 Cavity | |
| Theoretical yield | 0.1-2.5L:700BPH, 3-6L:380BPH | |
| Maximum mold thickness | 300mm | |
| Four pull rod spacing | 280 X500mm | |
| Power System | voltage standard | 380v/3PH/50Hz or special order |
| heating zone | 2Sections | |
| total power | 11KW | |
| container | Maximum container capacity | 0.1-2.5L(2 Cav) , 3-6L(1Cav) |
| Caliber range | 15-120mm | |
| Maximum container diameter | 35-220mm | |
| Maximum container height | 450mm | |
| auxiliary machine | Low pressure air compressor | 8-10Bar |
| High pressure air compressor | 30Bar | |
| air dryer | 1.2/30 | |
| Dimensions (length x width x height) | host | 148 X60 X213cm |
| oven | 137 X61 X134cm | |
| weight | 0.82Ton |
The above parameters are subject to change without prior notice
