HZHD Handheld Pump

HZHD Pump Series

The delivery pump is designed with a threaded connection method, which does not require any special tool skills and is easy to maintain and replace parts.

PTFE casing and PVDF blades have wear resistance and high toughness, and are fixed to the axis to maintain operational stability.

The internal shaft sleeve of the base is composed of Rulon, which is resistant to chemical substances.

The axis material is SUS316 and Hastelloy, and the pump tube body material is PPHT, PVDF, and SUS316, which are the best tools for transporting chemical substances.

Pump application industry:

Electronics industry, optoelectronics industry, semiconductor industry, wastewater treatment, electroplating industry, food industry, cosmetics industry, pharmaceutical factories, animal husbandry, textile industry, paint industry, and so on.

Feature: No shaft seal design

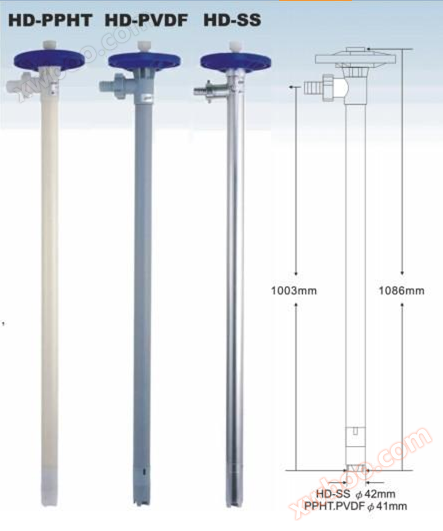

Pump tube material: PPHT, PVDF, SUS316L

Application scope of pump material:

PPHT: Maximum temperature: 80 ℃/175 ℉, generally acidic or alkaline substances such as acetic acid, disinfectants, hydrides, bleach, phosphoric acid (45%), etc.

PVDF: High corrosive and toxic substances with a maximum temperature of 100 ℃/212 ℉, such as concentrated hydrofluoric acid, propionic acid, stearic acid, sulfuric acid, and other solutions.

SS: Maximum temperature of 100 ℃/212 ℉, combustible substances or flammable substances such as diesel, gasoline, various oils, alcohol, etc.

Maximum temperature resistance: 800C/1000C/1000C

Motor types: electric, pneumatic, electric pneumatic explosion-proof

Pump tube length: 700, 1000, 1200, 1500, 1800mm * * length can be customized

Applicable occasions: transportation and packaging of barrel liquids, tank liquids, strong acid and alkali liquids, electroplating solutions, oils and fats, flammable and explosive liquids

Maximum viscosity: Electric type 1000CPS Pneumatic type: 700CPS/1200CPS/5000CPS

There are also high viscosity barrel pumps with a maximum viscosity of 100000 mPaS (CPS) and FDA/3A grade barrel pumps.

Model: HZHD-E2-V+HZHD-XX-1000

Maximum flow rate: 0-180 L/min 0-220 L/min

Maximum head: 0-12m 0-29m

Pump tube material: Liquid receiving part: PPHT PVDF SS316L Impeller: PVDF

Pump tube length: 1000 mm Pump tube outer diameter: 41 mm SS: 42 mm

Liquid caliber: 3/4 "or 1"

Motor: 1 Φ 220V 50Hz-60Hz 800W IP44

Model: HZHD-A1/A3+HZHD-XX-1000

Maximum flow rate: 0-150 L/min 0-210 L/min

Maximum head: 0-8 m 0-29 m

Pump tube material: Liquid receiving part: PPHT PVDF SS316L Impeller: PVDF

Pump tube length: 1000 mm Pump tube outer diameter: 41 mm SS: 42 mm

Liquid caliber: 3/4 "or 1"

Pneumatic motor: 400W Maximum supply pressure: 7 Bar
