GT Large Injection Molding Machine

Machine features:

The characteristics of GT series injection molding machines are mainly reflected in the following six advantages: 1. Efficient injection system; 2、 Optimized locking structure; 3、 Reliable hydraulic design; 4、 Sensitive control system; 5、 High security; 6、 The overall design not only innovates in technology, but also emphasizes the human centered design concept.

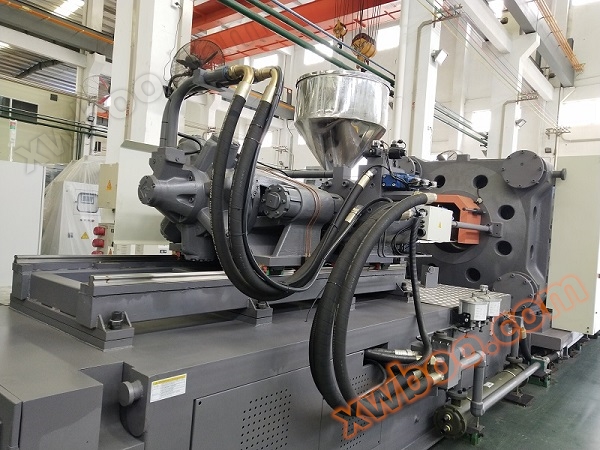

Shooting platform unit

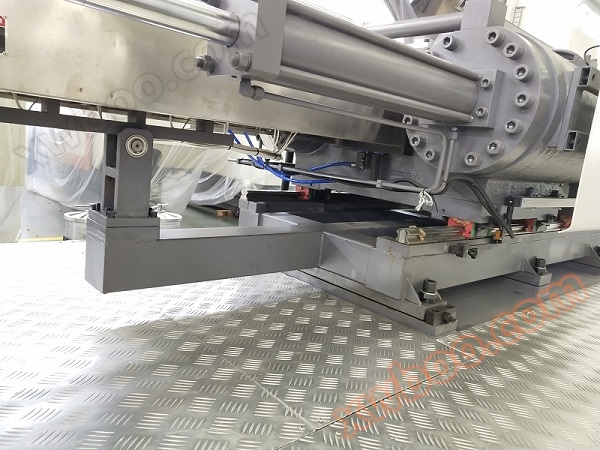

By using precision linear guides instead of traditional sliding guide rod structures, the resistance of the moving parts is only 1/20 of that of traditional guide rod structures, and the axial movement is very precise, greatly extending the life of the moving components; Fast response, easy to achieve ultra-high speed glue injection, good glue injection repeatability, and clean and pollution-free.

The dual displacement structure ensures better alignment of the injection stage, effectively preventing nozzle deviation and eliminating glue leakage, making the entire injection stage work more smoothly.

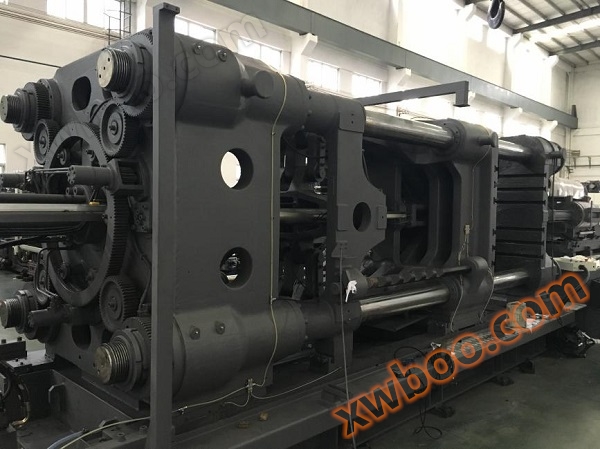

Robust locking system

Sturdy castings with stronger structural strength and greater stability

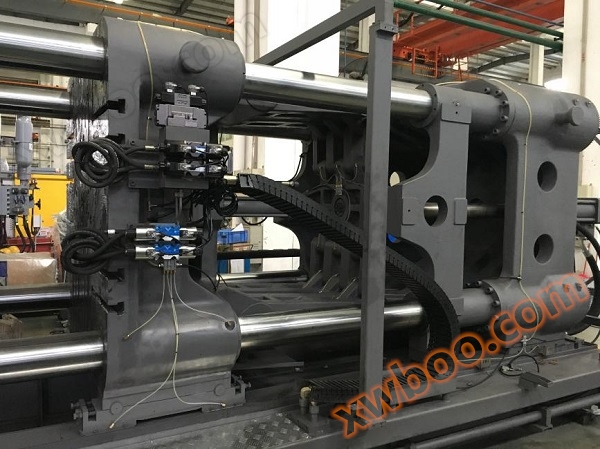

Strong cross head support plate and drag chain design

The sturdy locking structure system and powerful crosshead support plate provide perfect support and parallel action, making the unlocking process smoother.

The wires are connected by drag chains to provide protection and extend their lifespan.

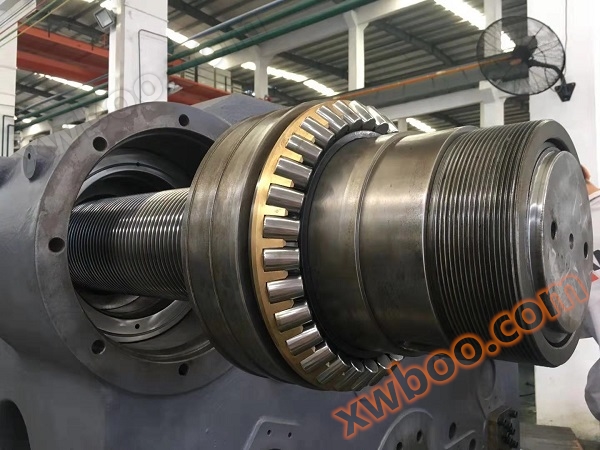

High hardness adjustable gear nut bearings

Equipped with high hardness adjustment gear nut bearings, the adjustment action is smoother, with low resistance and long service life.

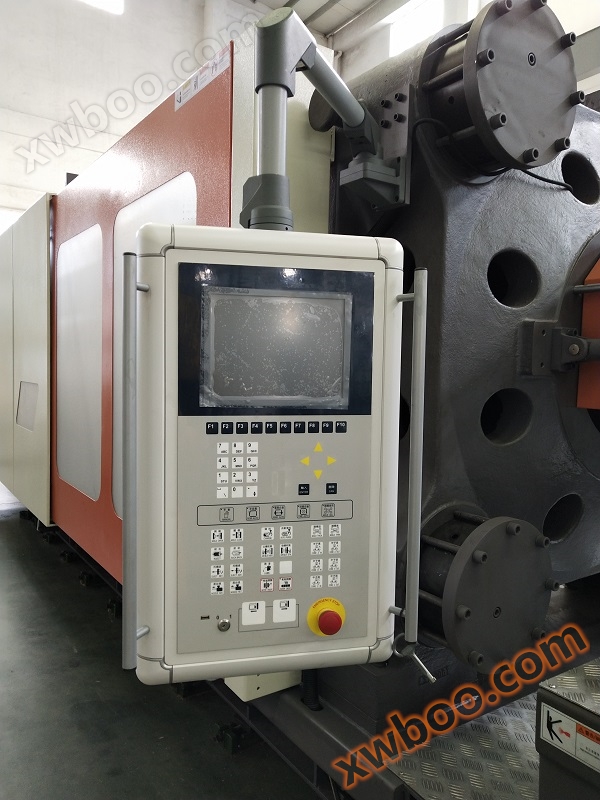

Design of rotatable controller

The controller with fast response and rotatable design can adjust the angle, making it more convenient for control personnel to use

Injection molding machine dedicated servo system

Energy saving and low noise. Compared to variable displacement pumps, it can save electricity by up to 30% to 55%.
