GT-3 single cylinder injection molding machine

Product Features:

The GT3 series injection molding machine adopts a technologically advanced single cylinder injection design, advanced industrial concepts and research platforms, and independently develops and produces innovative single cylinder elbow injection molding machines with high efficiency, energy saving, speed, precision and other characteristics. Enjoy approximately 30 national patents.

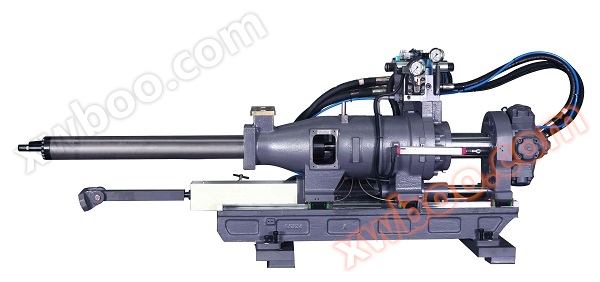

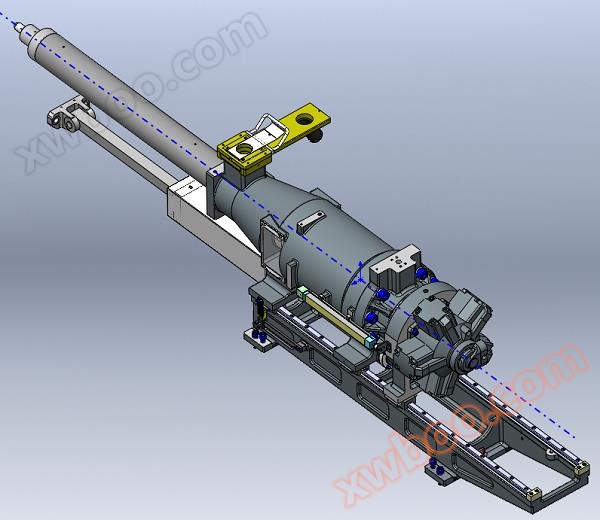

Single cylinder injection system with linear guide rail

A single cylinder injection system with leading national technology. The injection cylinder, adhesive motor, and plasticizing screw share the same centerline, avoiding the problem of oil inlet rate differences in traditional twin cylinder machines, comprehensively improving injection pressure and injection speed, achieving high-precision and fast precision injection molding, and meeting more complex and precise injection products. The overall design of the injection front plate ensures better screw alignment. Ultra low resistance oil return design, with much lower injection resistance than traditional twin cylinder engines (about 0.2 times that of traditional twin cylinder engines), achieving high response, faster speed, and greater energy efficiency. There is also a transparent window on the single cylinder system to observe the rotation of the screw. The linear guide rail of the injection platform has high positioning accuracy, low sliding friction coefficient, fast response, high repeatability of injection, and energy-saving effect.

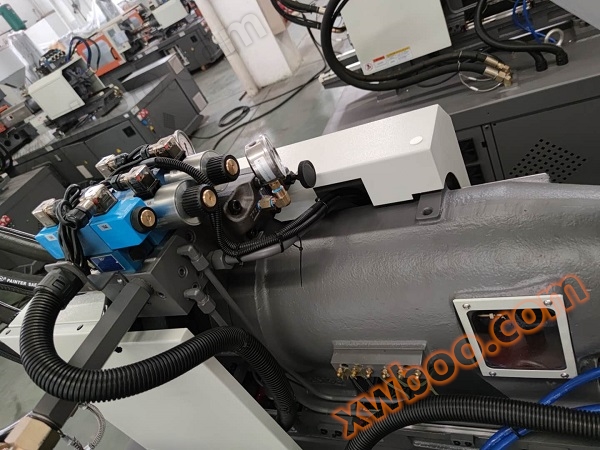

Rigid connection between injection action and control valve

Effectively reduce fluid fluctuations and improve injection accuracy

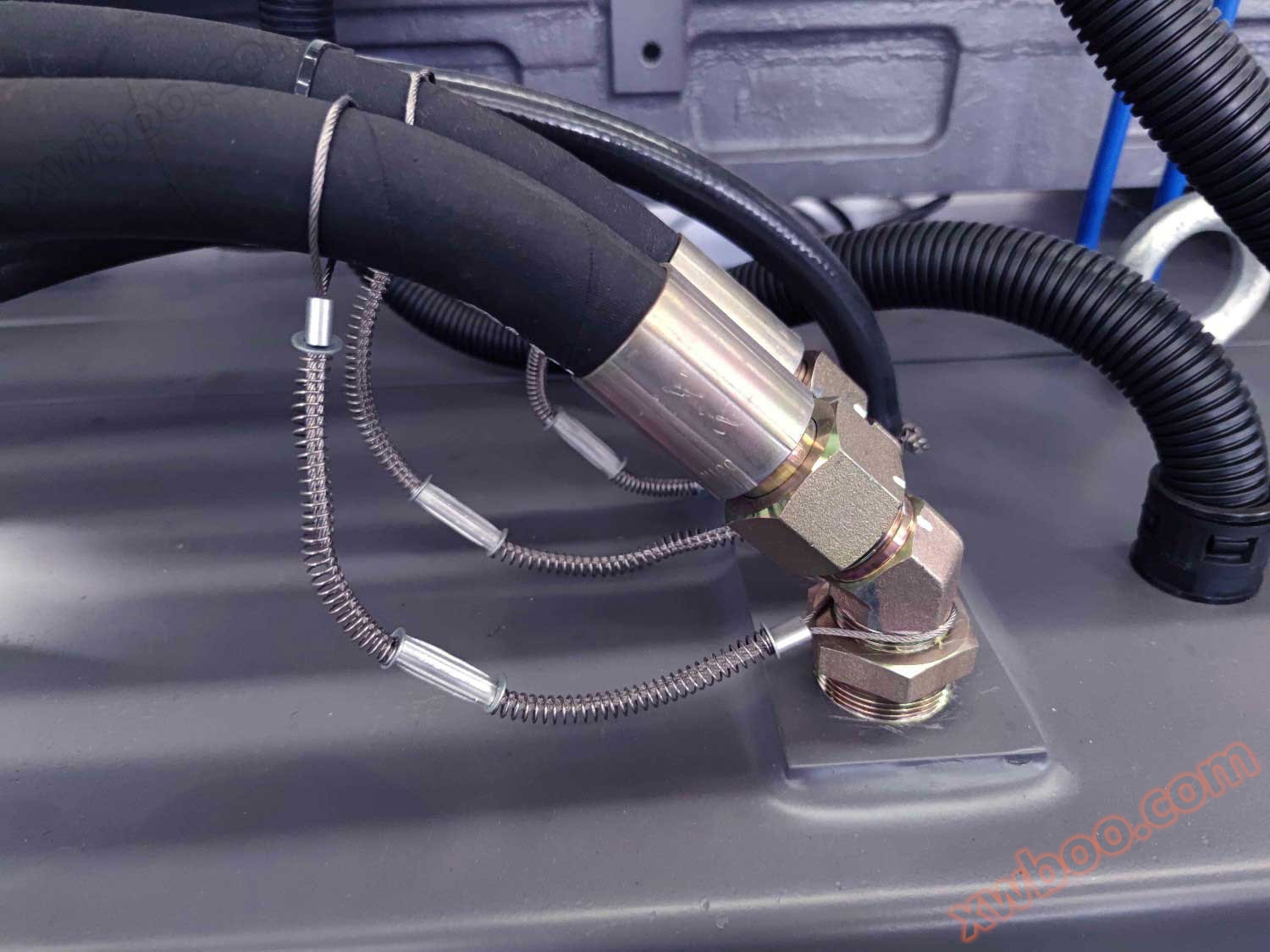

explosion-proof chain

Explosion proof chain device effectively protects the safety of operators

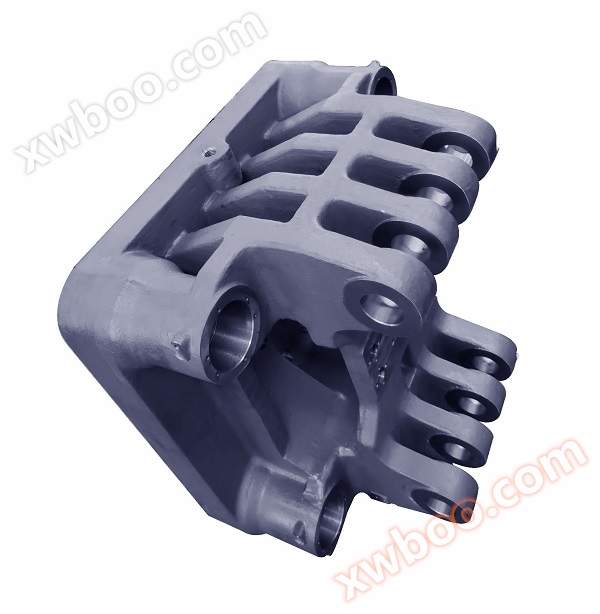

Enhanced Cross Head

The cross head structure is wide and thick, with strong structural rigidity and long service life

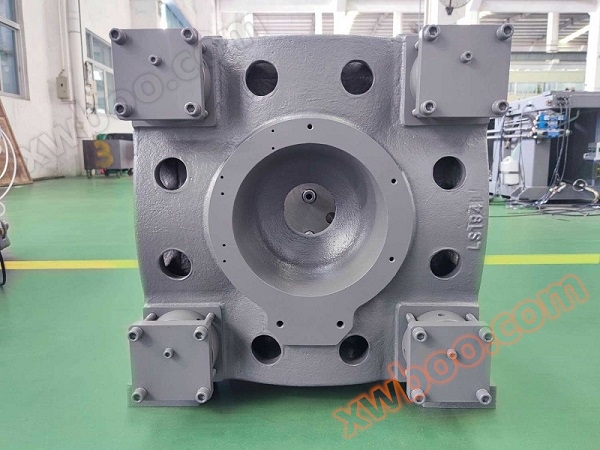

Upgraded headboard design (60 ton to 260 ton machines)

The front template adopts the patented "arch template" designed by Liansheng Company, which makes the stress more dispersed when the front template is under stress, avoiding stress concentration and extending the service life of the template.

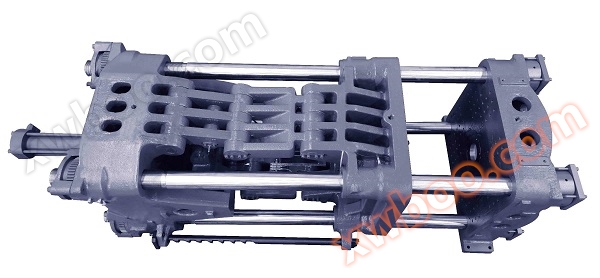

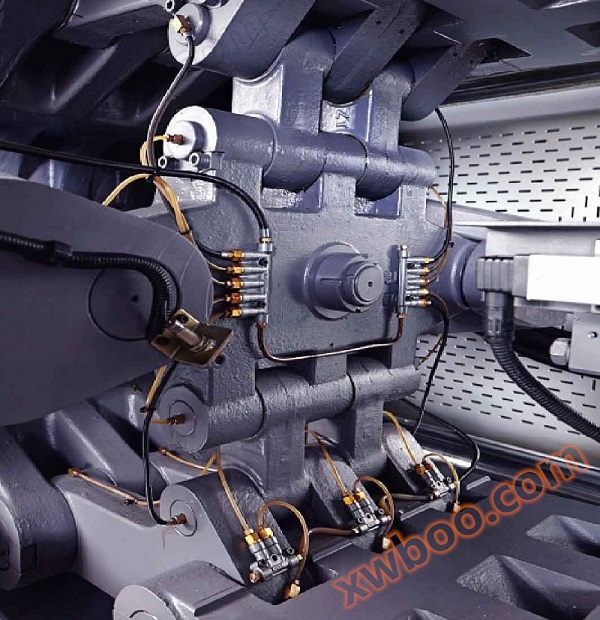

Widening the machine hinge and adding dynamic template hinge ear design

Increase the number of machine hinges, increase the shear surface of the pin shaft and steel sleeve, thereby improving the service life of the pin shaft and steel sleeve. The lock mold long hinge integrated structure reduces processing errors, avoids assembly errors, and facilitates maintenance.

Widen the hinge ear width of the dynamic template machine to make the stress on the template more evenly distributed, avoiding stress concentration and effectively controlling template deformation

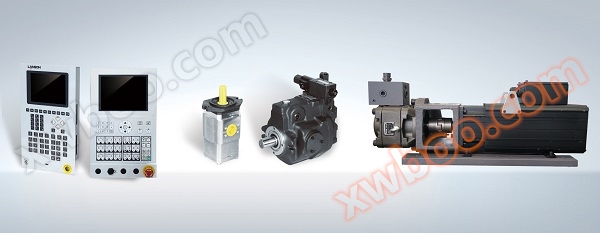

Intelligent controller and servo system

The new generation of intelligent and high-performance control system has stronger sensitivity, and the operation panel is equipped with a rotatable structure for easy operation

Servo system, fast response, energy-saving, quiet, strong power, small action inertia.
