FSB series fluoroplastic alloy centrifugal pump

NegotiableUpdate on 04/30

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

The FSB type fluoroplastic alloy centrifugal pump is designed according to international standards. The pump body is made of a metal shell lined with perfluoroalkoxy (F46), and the pump cover, impeller, and shaft sleeve are all made of metal inserts wrapped in fluoroplastic and sintered as a whole. The shaft seal adopts an external corrugated pipe mechanical seal. The static ring is made of 99% alumina ceramic or silicon nitride, and the dynamic ring is filled with PTFE material, which is corrosion-resistant and wear-resistant. It is suitable for transporting any concentration of sulfuric acid, hydrochloric acid, acetic acid, hydrofluoric acid, nitric acid, aqua regia, strong alkali, strong oxidant, organic solvent, reducing agent and other harsh corrosive media under harsh conditions. It is currently one of the strong corrosion-resistant equipment in the world. It has the advantages of compact and reasonable structure, strong corrosion resistance, tight and reliable sealing performance, stable operation, low noise, high mechanical strength, no aging, no toxin decomposition, easy maintenance, smooth flow channel, high efficiency, and energy conservation. Eliminate running, emitting, dripping, and leaking, widely used in industries such as chemical, acid, alkali, smelting, rare earth, pesticide, dye, medicine, papermaking, electroplating, electrolysis, acid washing, radio, chemical foil, scientific research institutions, and national defense industry.

Product Details

Product Introduction

All of our products are designed and optimized using computers. Our company has strong technical strength, rich production experience, and comprehensive testing methods to ensure stable and reliable product quality.

Technical parameters: Flow rate: 3.6-100m3/h; Head: 15-55m; Speed: 2900r/min; Power: 1.5-18.5KW; Inlet diameter: 25-100mm; Applicable temperature: -20 ℃ -120 ℃.

performance parameterThis data is for reference only, please refer to the actual order!

Specification and model	Flow rate (m3/h)	Head (m)	Caliber (mm)		Power (r/min)		Speed (r/min)	Erosion amount (m)	Efficiency (%)
			Import	Export	shaft power	Motor Power
25FSB-25	3	28	25	25	0. 95	1.5	2900	3	55
	3.6	25
	4.5	20
40FSB-15	4	17	40	32	1.2	3	2900	3	45
	5	15
	6	13
40FSB-20	8	22	40	32	1.4	3	2900	3	42
	10	20
	12	17
40FSB-30	8	32	40	32	1.6	3	2900	3	55
	10	30
	12	28
40FSB-40	8	43	40	32	3.2	4	2900	3	35
	10	40
	12	38
40FSB-50	8	52	40	32	6.4	5.5	2900	3	56
	10	50
	12	45
40FSB-60	6.3	62	40	32	6.8	7.5	2900	5	25
	8	60
	12	58
40FSB-70	6.3	73	40	32	9.8	11	2900	5	27
	8	70
	12	67
40FSB-80	6.3	82	40	32	10.1	11	2900	5	25
	8	80
	12	86
50FSB-20	10	22	50	32	1.71	3	2900	3.5	55
	12.5	20
	15	17
50FSB-25	9	28	50	32	1.8	3	2900	3.5	55
	12.5	25
	15	22
50FSB-30	9	32	50	32	1.9	3	2900	3.5	46
	12.5	30
	15	28
50FSB-40	9	42	50	32	5.1	5.5	2900	3	68
	12.5	40
	15	37
50FSB-50	9	52	50	32	7.1	7.5	2900	3 2	40
	12.5	50
	15	45
50FSB-60	9	62	50	32	7.1	7.5	2900	5	35
	12.5	60
	15	58
50FSB-70	9	72	50	32	10.3	11	2900	5	34
	12.5	70
	15	68
50FSB-80	9	81	50	32	10.5	11	2900	5. 1	32
	12.5	80
	15	76
65FSB-32	20	35	65	50	4.7	5.5	2900	2	65
	25	32
	30	28
65FSB-40	20	43	65	40	6.9	7.5	2900	3.5	51
	25	40
	30	37
65FSB-50	20	52	65	40	7.2	11	2900	3.6	48
	25	50
	30	46
65FSB-60	20	61	65	40	8	11	2900	3.5	48
	25	60
	30	55
65FSB-70	20	73	65	40	9.3	15	2900	3.5	48
	25	70
	30	65
65FSB-60	20	82	65	40	13.2	18.5	2900	3.5	48
	25	80
	30	76
80FSB-20	40	23	80	65	4.5	5 5	2900	3	45
	50	20
	60	15
80FSB-25	40	27	80	50	5.7	7.5	2900	3	67
	50	25
	60	20
80FSB-30	40	33	80	50	6.9	11	2900	3.5	64
	50	30
	60	25
80FSB-40	36	43	80	50	10.2	11	2900	3.5	48
	45	40
	54	35
80FSB-50	40	53	80	50	10.2	15	2900	3.5	57
	50	50
	60	45
80FSB-55	40	58	80	50	13.5	18.5	2900	4	50
	50	55
	60	48
80FSB-70	35	73	80	50	17	22	2900	4.5	48
	50	70
	60	65
80FSB-80	35	82	80	50	18	30	2900	4.5	45
	50	80
	60	72
100FSB-20	80	23	100	80	10	11	2900	3.5	60
	100	20
	120	16
100FSB-32	80	35	100	80	11.9	15	2900	3.5	58
	100	32
	120	25
100FSB-40	80	42	100	65	20	22	2900	4	57
	100	40
	120	37
100FSB-50	80	52	100	65	28	30	2900	4	55
	100	50
	120	46
125FSB-20	100	23	125	80	18	22	2900	5	61
	160	20
	180	15
125FSB-32	100	33	125	80	27	30	2900	5	65
	160	32
	180	28
125FSB-40	120	43	125	100	39	45	2900	5	68
	200	40
	220	36
125FSB-50	120	52	125	100	48	55	2900	5	67
	200	50
	220	46
40FSB-15D	4	18	40	32	0.4	3	2900	3	40
	5	15
	6	10
40FSB-20D	8	22	40	32	1.2	3	2900	3	42
	10	20
	12	17
40FSB-30D	8	32	40	32	1.2	3	2900	3	52
	10	30
	12	28
50FSB-20D	10	22	50	32	1.5	3	2900	3.5	55
	12.5	20
	15	17
50FSB-25D	9	28	50	32	1.8	3	2900	3.5	55
	12.5	25
	15	22
50FSB-30D	12	32	50	32	1.9	3	2900	3.5	54
	15	30
	18	28
65FSB-32D	20	35	65	50	3.6	5.5	2900	3.5	65
	25	32
	30	28
80FSB-20D	36	23	80	65	3.6	5.5	2900	3	45
	45	20
	54	15
80FSB-25D	34	27	80	65	3.8	7.5	2900	3.5	67
	42	25
	50	20
80FSB-30D	40	33	80	65	6.8	7.5	2900	3.5	68
	50	30
	60	25

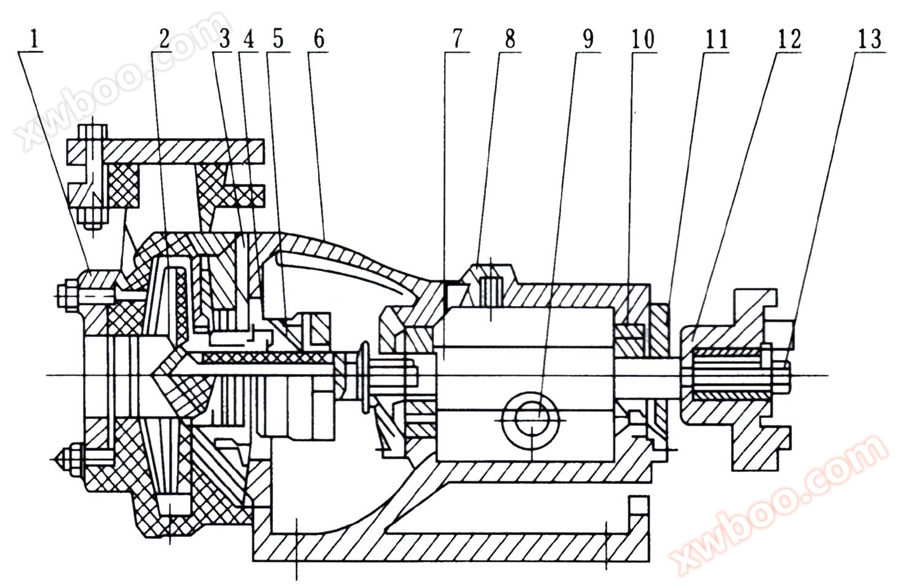

structural drawings

Pump body: One steel flange is embedded in each of the connecting parts on the left and right sides, made of pressed plastic alloy.
The right side of the back cover is embedded with a stainless steel plate (1Cr18Ni9Ti) molded with plastic alloy.
Impeller: Adopting shaft connection method Jinli Axle Force is made by processing high-quality steel shavings and outsourcing them with plastic alloy molding Make the impeller firmly integrated with the metal joint shaft Ensure that the shaft root and the rear of the impeller withstand the torque force during rotation In this way, the wetted part of the medium is made of plastic alloy.
Mechanical seal: Adopting WB2 and ST adjustable end face sealing technology without cooling water Made of silicon carbide and high-purity aluminum chloride ceramics The tomb is filled with tetrafluoroethylene Made of materials such as graphite

Serial Number	name	Serial Number	name
1	pump body	8	oiled-paper umbrella
2	impeller	9	Oil mirror
3	back cover	10	bearing
4	cover	11	bearing gland
5	Sealing element	12	coupling
6	bracket	13	Tighten the bolt
7	Pump shaft
