Jinan Goldman Sachs Chiller Manufacturing Co., Ltd
CDW-5200 laser chiller
NegotiableUpdate on 04/04
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
Product Overview: Laser chiller, water circulation chiller, circulating water chiller, cooling water circulation, cooling capacity of 1400W, is a laser chiller developed for laser equipment that generates heat and high temperature during long-term operation. It performs system cooling cycle
Product Details
Product Introduction：
The laser chiller CDW-5200, with a cooling capacity of 1400W, is developed for the laser equipment that generates heat and high temperature during long-term operation. It performs a system cooling cycle, and the heat can be discharged into the air. It has two functions: temperature control and constant temperature control, input and output control, and energy-saving and environmentally friendly cooling water flow.
Laser marking machine, laser coding machine, laser welding machine, laser cutting machine, machining center spindle, woodworking spindle, CO2 glass tube, metal RF tube, semiconductor, fiber optic, YAG laser, laser
Performance characteristics:
1. The main unit of the laser chiller adopts a famous brand compressor, which runs reliably, has high efficiency, low noise, and is energy-saving and durable.
2. The cooling capacity is 1400W.
3. Temperature control accuracy<± 0.1 ℃, ± 0.1 ℃ temperature difference control is optional.
4. It has multiple protection alarm functions, including overload protection, delay protection, water flow alarm, and temperature alarm.
5. Export to Europe and America, power supply connection work mode in various countries.
6. European and American design, small size, mobility, simple operation, focus on quality, and strive for excellence.

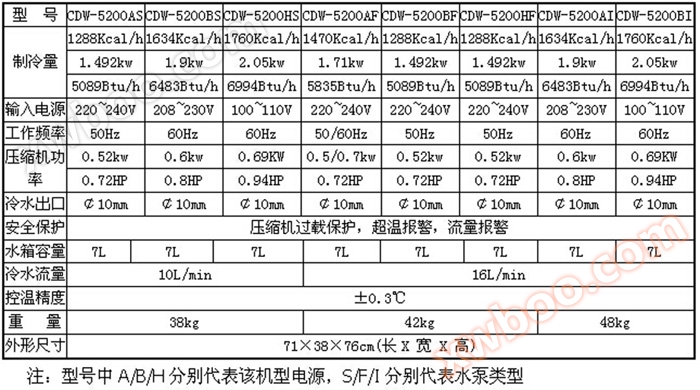

Technical Specifications:
CDW-5200AS is suitable for 130W single cooling of carbon dioxide glass tubes.
CDW-5200AF is suitable for cooling CNC spindles and welding equipment with 100W or 8KW carbon dioxide glass tubes;
CDW-5200AI is suitable for single 15W-30W solid-state lasers, 50W-75W semiconductor lasers, and 30W metal RF tube cooling.
CW-5202 dual inlet and outlet series (optional); Heater (optional); Purified water quality configuration (optional).
Microcomputer automatic temperature control and automatic adjustment.
The laser chiller CDW-5200, with a cooling capacity of 1400W, is developed for the laser equipment that generates heat and high temperature during long-term operation. It performs a system cooling cycle, and the heat can be discharged into the air. It has two functions: temperature control and constant temperature control, input and output control, and energy-saving and environmentally friendly cooling water flow.
Laser marking machine, laser coding machine, laser welding machine, laser cutting machine, machining center spindle, woodworking spindle, CO2 glass tube, metal RF tube, semiconductor, fiber optic, YAG laser, laser
Performance characteristics:
1. The main unit of the laser chiller adopts a famous brand compressor, which runs reliably, has high efficiency, low noise, and is energy-saving and durable.
2. The cooling capacity is 1400W.
3. Temperature control accuracy<± 0.1 ℃, ± 0.1 ℃ temperature difference control is optional.
4. It has multiple protection alarm functions, including overload protection, delay protection, water flow alarm, and temperature alarm.
5. Export to Europe and America, power supply connection work mode in various countries.
6. European and American design, small size, mobility, simple operation, focus on quality, and strive for excellence.
Technical Specifications:
CDW-5200AS is suitable for 130W single cooling of carbon dioxide glass tubes.
CDW-5200AF is suitable for cooling CNC spindles and welding equipment with 100W or 8KW carbon dioxide glass tubes;
CDW-5200AI is suitable for single 15W-30W solid-state lasers, 50W-75W semiconductor lasers, and 30W metal RF tube cooling.
CW-5202 dual inlet and outlet series (optional); Heater (optional); Purified water quality configuration (optional).
Microcomputer automatic temperature control and automatic adjustment.
