Jinan Goldman Sachs Chiller Manufacturing Co., Ltd
5300 laser marking machine chiller
NegotiableUpdate on 04/04
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
Product Overview: Product Introduction: Laser Chiller CDW-5300, with a cooling capacity of 1800W, is a laser chiller developed for laser equipment that generates heat and high temperature during long-term operation. It performs a system cooling cycle, and the heat can be discharged into the air. It has two functions: temperature control and constant temperature
Product Details
Product Introduction
The laser chiller CDW-5300, with a cooling capacity of 1800W, is developed for the laser equipment that generates heat and high temperature during long-term operation. It performs a system cooling cycle, and the heat can be discharged into the air. It has two functions: temperature control and constant temperature control, input and output control, and energy-saving and environmentally friendly cooling water flow.
Scope of application:
Laser marking machine, laser coding machine, laser welding machine, laser cutting machine, machining center spindle, woodworking spindle, CO2 glass tube, metal RF tube, semiconductor, fiber optic, YAG laser, laser
Performance characteristics:
1. The main unit of the laser chiller adopts a famous brand compressor, which runs reliably, has high efficiency, low noise, and is energy-saving and durable.
2. The cooling capacity is 1800W.
3. Temperature control accuracy<± 0.3 ℃, ± 0.1 ℃ temperature difference control is optional.
4. It has multiple protection alarm functions, including overload protection, delay protection, water flow alarm, and temperature alarm.
5. Export to Europe and America, power supply connection work mode in various countries.
6. European and American design, small size, mobility, simple operation, focus on quality, and strive for excellence.

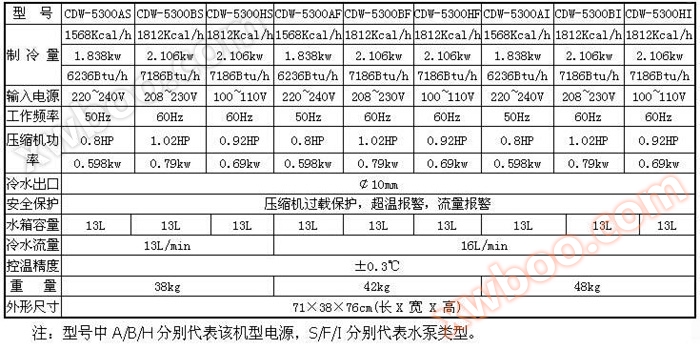

Technical Specifications:
CDW-5300AF is suitable for CO2 glass tube single 150W or machining center spindle total power of 14KW2 cooling.
CDW-5300AI is suitable for CO2 glass tube 200W single tube or semiconductor laser 100W single tube, or solid-state laser 50W-75W,
CO2 metal RF tube single 100W, CNC spindle single 18KW or welding equipment;
CW-5302 dual inlet and outlet series (optional); Heater (optional); Purified water quality configuration (optional).
Microcomputer automatic temperature control, automatic adjustment, and automatic switching.
The laser chiller CDW-5300, with a cooling capacity of 1800W, is developed for the laser equipment that generates heat and high temperature during long-term operation. It performs a system cooling cycle, and the heat can be discharged into the air. It has two functions: temperature control and constant temperature control, input and output control, and energy-saving and environmentally friendly cooling water flow.
Scope of application:
Laser marking machine, laser coding machine, laser welding machine, laser cutting machine, machining center spindle, woodworking spindle, CO2 glass tube, metal RF tube, semiconductor, fiber optic, YAG laser, laser
Performance characteristics:
1. The main unit of the laser chiller adopts a famous brand compressor, which runs reliably, has high efficiency, low noise, and is energy-saving and durable.
2. The cooling capacity is 1800W.
3. Temperature control accuracy<± 0.3 ℃, ± 0.1 ℃ temperature difference control is optional.
4. It has multiple protection alarm functions, including overload protection, delay protection, water flow alarm, and temperature alarm.
5. Export to Europe and America, power supply connection work mode in various countries.
6. European and American design, small size, mobility, simple operation, focus on quality, and strive for excellence.
Technical Specifications:
CDW-5300AF is suitable for CO2 glass tube single 150W or machining center spindle total power of 14KW2 cooling.
CDW-5300AI is suitable for CO2 glass tube 200W single tube or semiconductor laser 100W single tube, or solid-state laser 50W-75W,
CO2 metal RF tube single 100W, CNC spindle single 18KW or welding equipment;
CW-5302 dual inlet and outlet series (optional); Heater (optional); Purified water quality configuration (optional).
Microcomputer automatic temperature control, automatic adjustment, and automatic switching.
