1. Overview:

PEEK is a high-temperature resistant thermoplastic with a high glass transition temperature (143 ℃) and melting point (334 ℃), and a load heat deformation temperature of up to 316 ℃ (30% glass fiber or carbon fiber reinforced grades)
PEEK rod model and color:

1、PEEK5600G（褐灰色/土黄色）Made from pure polyetheretherketone resin as raw material, it has good toughness and impact resistance among all PEEK grades. PEEK can be disinfected using convenient methods such as steam, drying heat, ethanol, and X-rays, and the raw materials used to manufacture PEEK comply with the EU and US FDA regulations on food stress. These characteristics make it widely used in medical, pharmaceutical, and food processing industries.

2. PEEK-5600LF30 (black)The result of adding PTFE, graphite, and carbon fiber is toPEEK-5600LF30 has become a bearing grade plastic. Its superior friction performance (low friction coefficient, wear resistance, high peak pressure limit) makes it an ideal material for friction applications at this level.

3. PEEK-5600GF30 (brown gray)This material is filled with 30% glass fiber reinforced plastic, which has better rigidity and creep resistance than PEEK5600G, as well as better dimensional stability, making it ideal for manufacturing structural parts. Can withstand fixed loads for a long time at high temperatures. If PEEK-5600GF30 is used as the sliding component, its adaptability should be carefully checked because the glass fiber scratches the mating surface.

4. PEEK-5600CF30 (black)This material is filled with 30% carbon fiber reinforcement, which has better mechanical properties (higher modulus of elasticity, mechanical strength, and creep resistance) and is more wear-resistant than PEEK-5600GF30. Moreover, the plastic reinforced with carbon fiber has 3.5 times faster thermal conductivity and dissipates heat from the bearing surface than the unenhanced PEEK plastic.

2、 PEEK specifications: The following units are in millimeters (mm)

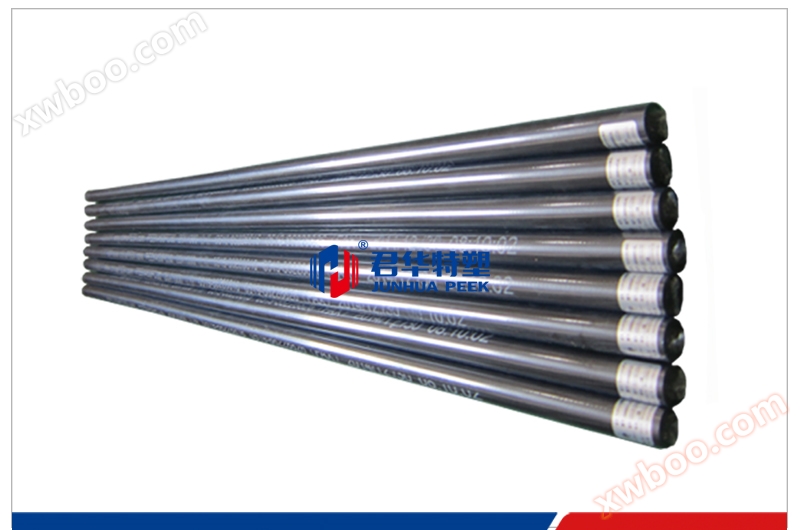

PEEK rod: diameter 5-200 × 1000 (length can be customized according to requirements for 3000)(If the above specifications are not suitable, our company can provide product size, length, and width specifications for zero cutting)
