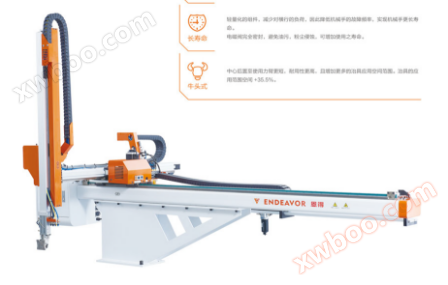

Two axis servo single arm cow head series

E-SERIES

e seriescompleteServo manipulator————Flexible, efficient, fast, and wise choice

SecurityThe terminal wiring of the electronic control circuit has no air joints to avoid poor contact caused by joint corrosion. The lower part of the arm is equipped with a detection switch and an anti fall device, ensuring high safety. Close proximity switches and anti-collision devices are installed at various extreme positions in the horizontal, pulling, and vertical directions, which can effectively prevent loss of control during operation. The comprehensive dual protection function of software and hardware ensures the safe operation of injection molding machines and robotic arms. I/O short circuit protection design effectively prevents circuit board damage caused by peripheral circuit short circuits.

Long lifespanLightweight components. Reduce the lateral load, thus reducing the frequency of mechanical arm failures and achieving a longer lifespan of the robotic arm. The solenoid valve is completely sealed, avoiding oil stains and dust corrosion, which can increase its service life.

Bullhead styleThe center rear to use force arm is shorter, more durable, and increases the range of fixture application space. The application range space of the fixture is+35.5%.

ET+S2-SERIESTWO-AXES SERVO SINGLE-ARMOPEN TYPE SERIES

Two axis servo single arm cow head series

Model suitable for Applicable For

◆ET+S2Series suitable for 50T-700T injection molding machines

◆Drive mode: Horizontal servo+Up and down servo+Pull pneumatic

◆The arm has both single and double cut styles; Up and down travel: 800-1300mm

◆Suitable for two plate molds, finished product extraction

◆Optional addition of electric adjustment function, eliminating the hassle of manually adjusting the stroke

◆Bullhead style structural design significantly increases the space for fixture retrieval

◆ET+S2 series match 50T-700T injection molding machines

◆Driving mode: transverse servo+vertical servo+crosswisepneumatic

◆Sing e-stage and double-stage arms are optional; verticalstroke: 800- 1300mm

◆Suitable for taking shaped products out of two-plate molds

◆Electric stroke regulation is optional,which can save thetrouble of manually regulating the stroke

◆Open type design ensures much more room to take outproducts/remnant materials

Size image:

Main specification table:
