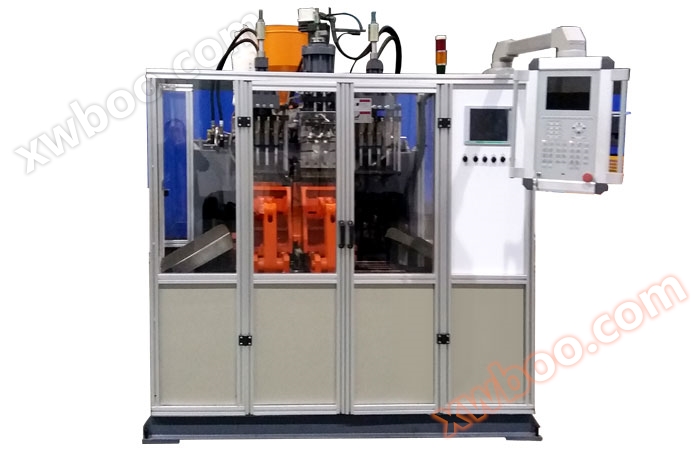

KSC70D-5LII/4 Fully Automatic Bottle Blowing Machine
NegotiableUpdate on 02/11
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
Kaisu Machinery is a professional blow molding machine manufacturer specializing in fully automatic hollow blow molding machines ..
Product Details
Technical features of KSC70D-5LII/4 fully automatic bottle blowing machine
The KSC70D-5LII/4 fully automatic bottle blowing machine adopts a PLC human-machine interface and touch based operation. Fault alarm self diagnosis, clear at a glance.
The central feeding type die head completely eliminates the convergence line of products and allows for quick material and color changes.
The mold is moved using double linear guide rails and the center is locked. Uniform force distribution ensures a smooth cut on the plastic bottle.
The hydraulic system adopts proportional hydraulic control,Fully automatic bottle blowing machineEquipped with imported hydraulic components, the action is precise, stable, and energy-saving.
The high-speed, efficient, and low-energy plasticizing system ensures even and excellent mixing, ensuring product purity.
The central feeding type die head completely eliminates the convergence line of products and allows for quick material and color changes.
The mold is moved using double linear guide rails and the center is locked. Uniform force distribution ensures a smooth cut on the plastic bottle.
The hydraulic system adopts proportional hydraulic control,Fully automatic bottle blowing machineEquipped with imported hydraulic components, the action is precise, stable, and energy-saving.
The high-speed, efficient, and low-energy plasticizing system ensures even and excellent mixing, ensuring product purity.
This series of fully automatic blow molding machines mainly blow plastic bottles such as PE and PP, which is different from PET blow molding machines and belongs to the blow molding machine family.
| Technical parameters of KSC70D-5LII/4 fully automatic bottle blowing machine | UNIT | KSC70D-5LII/1 |
| Maximum product volume | L | 5 |
| idle loop | PCS/H | 700x2 |
| Screw diameter | MM | 70 |
| Blow molding machine screw length to diameter ratio | L/D | 25 |
| Screw motor power | KW | 22 |
| Screw heating power | KW | 13.8 |
| Number of screw heating sections | ZONE | 3 |
| HDPE extrusion volume | KG/H | 80 |
| Hollow blow molding machine oil pump motor power | KW | 7.5 |
| clamping force | KN | 70 |
| Opening and closing stroke of the mold | MM | 165-525 |
| Template size | W x H(MM) | 3205x 380 |
| Maximum die diameter | MM | 135 |
| Heating power of mold head | KW | 5.7 |
| Number of heating sections | ZONE | 3 |
| Blowing pressure of bottle blowing machine | MPA | 0.6 |
| Gas consumption | M3/MIN | 0.5 |
| cooling water pressure | MPA | 0.3 |
| water consumption | L/MIN | 50 |
| External dimensions of bottle blowing machine | L x W x H(M) | 3.4 x 2.2 x 2.5 |
| KSC70D-5LII/4 Fully Automatic Bottle Blowing Machine Weight | TON | 5.8 |
| Technical parameters of KSC70D-5LII/4 fully automatic bottle blowing machine | Single mode head | Dual mode head | The third mock examination head | Four model head |
| Center distance of mold head | - | 150/160mm | 110/120mm | 80mm |
