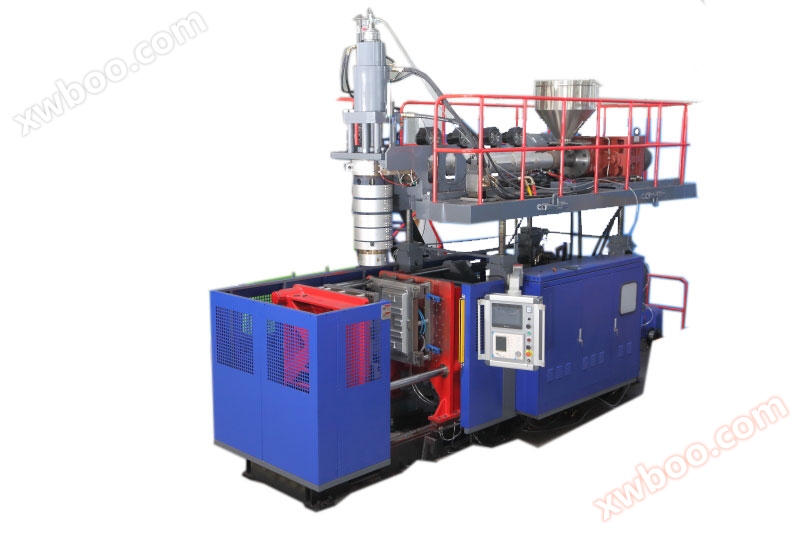

KSA80-30L medium-sized storage blow molding machine

KSA80-30L medium-sized storage blow molding machineFEATURES
Medium sized storage blow molding machine with PLC and human-machine interface, touch based operation. Fault alarm self diagnosis, clear at a glance.
The central feeding type die head completely eliminates the convergence line of products and allows for quick material and color changes.
The mold is moved using double linear guide rails and the center is locked. Uniform force distribution ensures smooth cutting of the product.
The hydraulic system adopts proportional hydraulic control, equipped with imported hydraulic components, with precise, stable and energy-saving actions.
The blow molding machine has a high-speed, efficient, and low-energy plasticizing system, which ensures excellent mixing and ensures product purity.

Technical parameters of KSA80-30L medium-sized storage blow molding machine	UNIT	KSA80-30L
Maximum product volume	L	30
idle loop	PCS/H	650
Screw diameter	MM	80
Blow molding machine screw length to diameter ratio	L/D	25
Screw motor power	KW	30
Screw heating power	KW	16
Number of screw heating sections	ZONE	4
HDPE extrusion volume	KG/H	100
Blow molding machine oil pump motor power	KW	15
clamping force	KN	180
Opening and closing stroke of the mold	MM	400-900
Template size	W x H(MM)	760x 660
Maximum die diameter	MM	300
Storage capacity	L	4
Heating power of mold head	KW	12
Number of heating sections	ZONE	4
Blow pressure of hollow blow molding machine	MPA	0.8
Gas consumption	M3/MIN	0.8
cooling water pressure	MPA	0.3
water consumption	L/MIN	60
Machine dimensions	L x W x H(M)	4.5 x 2.4x 3.5
machine weight	TON	11.5
