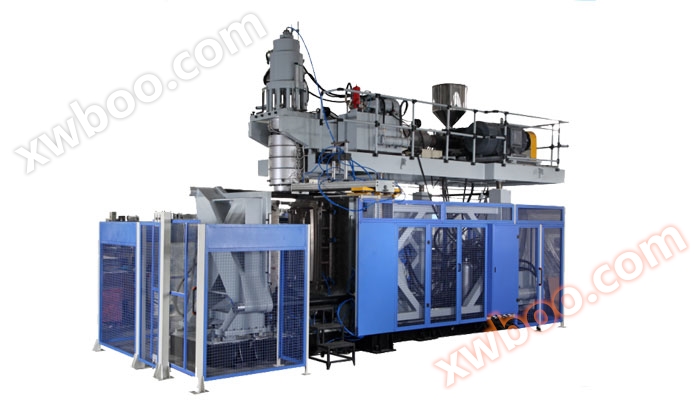

KSA120-220L Large Blow Molding Machine

Large blow molding machine with PLC and human-machine interface, touch based operation. Fault alarm self diagnosis, clear at a glance.
The central feeding type die head completely eliminates the convergence line of products and allows for quick material and color changes.
The mold is moved using double linear guide rails and the center is locked. Uniform force distribution ensures smooth cutting of the product.
The hydraulic system adopts proportional hydraulic control, equipped with imported hydraulic components, with precise, stable and energy-saving actions.
The blow molding machine uses a high-speed, efficient, and low-energy plasticizing system, which ensures excellent mixing and ensures product purity.

Technical Parameter	UNIT	KSA120-220L
Maximum product volume	L	220
idle loop	PCS/H	280
Screw diameter	MM	120
Blow molding machine screw length to diameter ratio	L/D	30
Screw motor power	KW	110
Screw heating power	KW	36
Number of screw heating sections	ZONE	6
HDPE extrusion volume	KG/H	350
Oil pump motor power	KW	45
clamping force	KN	900
Opening and closing stroke of the mold	MM	700-1600
Blow molding machine template size	W x H(MM)	1400x 1650
Maximum die diameter	MM	580
Storage capacity	L	30
Heating power of mold head	KW	30
Number of heating sections	ZONE	6
blowing pressure	MPA	0.8
Gas consumption	M3/MIN	1.8
Cooling water pressure of large blow molding machine	MPA	0.3
water consumption	L/MIN	220
Machine dimensions	L x W x H(M)	6.0x 3.2x 5.0
machine weight	TON	32
