Five axis servo dual arm product

E-SERIES

e seriescompleteServo manipulator————A versatile robotic arm full of imagination, once and for all

intelligence8-inch TFI high-definition touch screen, user-friendly human-machine interface. Teach stack and matrix positioning functions with multiple modes. Support logical instructions such as conditional judgment, loop control, and waiting for signals. Adopting a multi CPU modular architecture, the operator, main control module, and expansion module have independent CPU units to improve system response speed and maximize system security. By using standard industrial buses for hardware expansion, the system has strong adaptability and flexibility. The hardware adopts a multi-layer PCB board structure and multi-level high-precision power modules, with strong anti-interference ability. Hardware protection function, each output signal control is equipped with intelligent detection, and has short circuit, overload, and temperature protection functions.

PrecisionAll five axes are driven by servo motors, coupled with high-precision linear sliding rails and imported steel wire belt transmission, providing fast speed, low noise, and accurate positioning. The suction cup fixture adopts an air red driven linkage mechanism for smooth flipping and accurate positioning. The double section robotic arm adopts imported steel wire belts to achieve signal speed function, which runs quickly and smoothly.

long-lifeFull servo system reduces the failure frequency of the robotic arm and achieves a longer lifespan of the robotic arm. The solenoid valve is completely sealed to avoid oil stains and slow corrosion caused by dust, which can increase its service life.

ED+S5—SERIES FIVE-AXES SERVO DOUBLEARM SERIES

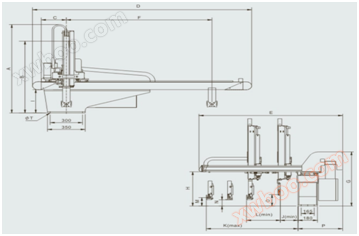

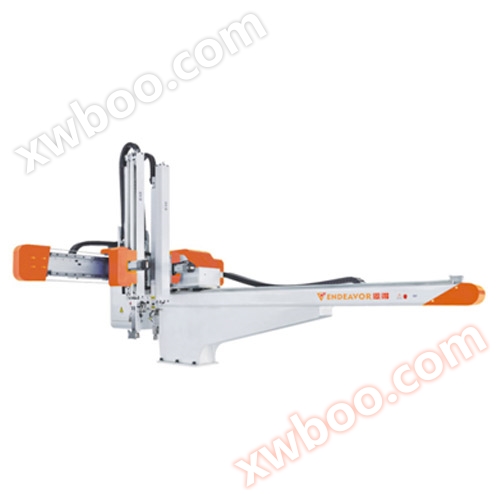

Five axis servo dual arm series

Machine applicable for cable

◆ED+S5 series is suitable for 50T-1300T injection molding machines
◆Drive mode: Horizontal servo+Main and auxiliary arm up and down servo+Main and auxiliary arm pulling servo

◆The arm has both single and double cut styles; Up and down travel: 700-1800mm

◆Suitable for three board molds, simultaneous removal of products and material heads

◆Adopting multi axis full servo drive and open programming, greatly reducing cycle time

◆It can achieve various functions such as embedding, stacking, circulating storage, and auxiliary processing

◆ED+S5 series match 50T- 1300T injection molding machines

◆Driving mode: Traverse servo+main arm secondary arm vertical servo+main arm secondary arm crosswise servo
◆Single-stage and double-stage arms are optional ; vertical stroke: 700-1800mm
◆Suitable for taking shaped products and remnant of raw materials out of three-plate molds simultaneously
◆Multi-axes full servo driving and open programming signify cantly shorten the cycle
◆Avarietyoffunctions can be realized,including embedding,piling,repeated placement,auxiiary processing,and so on
