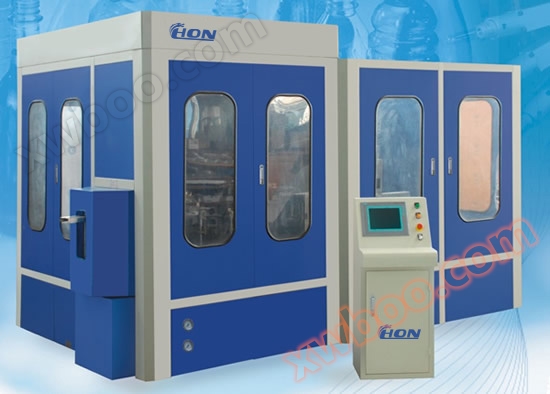

CM-G4/CM-G6/CM-G8/CM-G10 rotary fully automatic bottle blowing machine

CM-G4/CM-G6/CM-G8/CM-G10 rotary fully automatic bottle blowing machine *High production capacity: Single chamber production capacity of 1400 bottles/chamber/hour.
*High yield: up to 99.5% or more.
*Energy saving: The heating machine adopts short chain links (with a pitch of 50.8mm), which means that the same heating length can heat more preforms, saving 25% of electricity.
*High control accuracy and fast response, the electrical control system adopts SIMENS. Stable performance: The blowing system adopts German air valves and cylinders, with stable and accurate stretching speed and good product consistency.
*Quick mold installation mechanism, reliable mold installation, and quick replacement.
*Automatic feeding device and automatic return device.

The CM-G series rotary blow molding machine is equipped with high-tech mechanical components, electrical components, and pneumatic components, which have the advantages of high automation, stability, safety, and efficiency. The speed can reach up to 14000/hour, and the production process is pollution-free.

model	project	CM-G4	CM-G6	CM-G8	CM-G10
production	According to the bottle shape	4500-6000 bottles/hour	7500-9000 bottles/hour	9000-12000 bottles/hour	11000-15000 bottles/hour
Bottle making specifications	Bottle diameter	≤120mm	≤120mm	≤120mm	≤120mm
	Bottle height	＜325mm	＜325mm	＜325mm	＜325mm
	Bottle mouth diameter	18-38mm	18-38mm	18-38mm	18-38mm
mold	No. of Cavities	4	6	8	10
	Stencil thickness	ø190mm	ø190mm	ø190mm	ø190mm
	supply voltage	380v/220v 3-phase 50/60Hz	380v/220v 3-phase 50/60Hz	380v/220v 3-phase 50/60Hz	380v/220v 3-phase 50/60Hz
power	Installed power	120KW	150KW	180KW	220KW
	Power usage	50KW	57KW	80KW	100KW
Gas source	Blowing bottle pressure	6.4 m3/min 3.0Mpa	10.0 m3/min 3.0Mpa	12.0 m3/min 3.0Mpa	16.0m3/min 3.0Mpa
	Operating pressure	-	-	4.0 m3/min 1.0Mpa	6.0m3/min 1.0Mpa
	air receiver	1.0 m33.0 Mpa	2.0 m33.0 Mpa	2.0 m33.0 Mpa	2.0 m33.0 Mpa
	Air Dryer	6.0 m3/min 3.0Mpa	10.0 m3/min 3.0Mpa	12.0 m3/min 30kg	16.0 m3/min 3.0Mpa
cooling water	Water cooler	3HP	5HP	8HP	10HP
Host size	Dimensions (length * width * height)	2780*4000*2100mm	3200*2730*2190mm	3600*3100*2190mm	4200*3270*2190mm
Size of billet machine	Dimensions (length * width * height)	1200*500*2800mm	1200*500*2800mm	1400*500*2800mm	1800*800*2800mm
Hopper size	Dimensions (length * width * height)	1200*1100*750mm	1300*1200*1000mm	1500*1300*1200mm	1600*1500*1200mm
Weight		4500 KG	6000 KG	8000 KG	9000KG
Product raw materials		PET	PET	PET	PET
