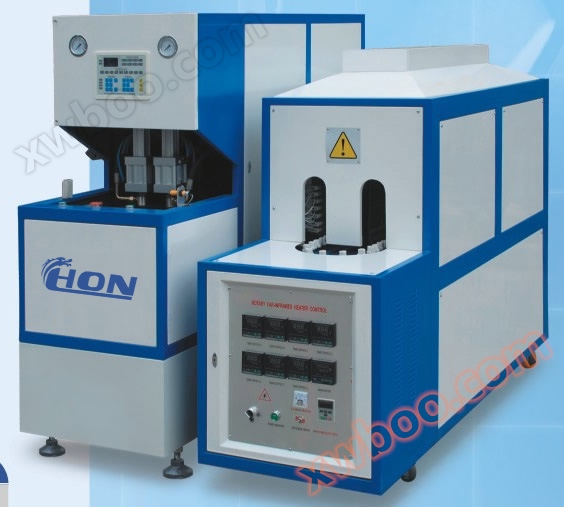

CM-8Y1 semi-automatic bottle blowing machine

CM-8Y1 semi-automatic bottle blowing machine The M-8Y1 semi-automatic bottle blowing machine is suitable for blowing PET bottles of various shapes, with capacities ranging from 10 milliliters to 2 liters. This bottle blowing machine is widely used for blowing mineral water bottles, cosmetic bottles, and oil bottles.
*Adopting a hyperbolic axis curved arm linkage locking system, the locking is stable and the operating speed is fast. A far-infrared rotating oven is used for uniform heating.
*The pneumatic system is divided into two parts: action and blowing, to meet the requirements of different air pressures for action and blowing bottles, and to provide stable high pressure for blowing
Make large capacity bottles with irregular shapes.
*This machine is equipped with a muffler and various component refueling devices.
*This machine is divided into two modes: jog and semi-automatic.
*This machine has a small size, low investment, one person operation, and is simple and safe.

model	project		CM-8Y1
Bottle type	Bottle making raw materials	/	PET
	Bottle capacity	L	0.1-2
	Theoretical yield	pcs/h	600-900
	Bottle height	mm	≤300
	Inner diameter of preform	mm	≥φ12
Forming mold	Maximum template area	mm	350*380
	Maximum mold thickness	mm	210
	Mold opening itinerary	cm	160
Machine size and weight	Host appearance	mm	1600*600*1610
	Weight	kg	500
	Oven appearance	cm	1870*630*1450
	Oven weight	kg	250
	Installed power	kw	17.5
