CM-8Y semi-automatic bottle blowing machine

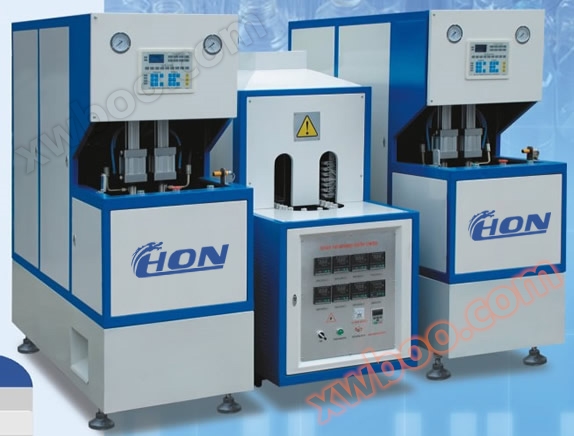

CM-8Y semi-automatic bottle blowing machine The CM-8Y semi-automatic high-pressure bottle blowing machine is suitable for blowing PET bottles of various shapes, with capacities ranging from 10 milliliters to 2 liters. This bottle blowing machine is widely used for blowing mineral water bottles, carbonated beverage bottles, cosmetic bottles, etc.
*Adopting a hyperbolic axis curved arm linkage locking system, the locking is stable and the operating speed is fast. A far-infrared rotating oven is used for uniform heating.
*The pneumatic system is divided into two parts: action and blowing, to meet the requirements of different air pressures for action and blowing bottles, and to provide stable high pressure for blowing large volume bottles with irregular shapes.
*This machine is equipped with a muffler and various component refueling devices.
*This machine is divided into two modes: jog and semi-automatic.
*This machine has a small size, low investment, one person operation, and is simple and safe.

model	project		CM-8Y
Bottle shaped	Product raw materials	/	PET
	volume	L	0.1-2
	Theoretical yield	pcs/h	1400-1800
	Bottle height	mm	≤300
	Inner diameter of preform	mm	≥φ12
mold	Maximum template area	mm	350*380
	Maximum mold thickness	mm	210
	Mold opening itinerary	cm	160
Host size and weight	Host appearance	mm	1600*600*1610
	Weight	kg	500
	Oven appearance	mm	1870*630*1450
	Oven weight	kg	250
	Installed power	kw	17.5
