Dongguan Changjiu Hot Melt Adhesive Spraying Machinery Co., Ltd
Battery Box Sealing Machine
NegotiableUpdate on 04/15
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
Equipment Model: CJ-14P-QD Appearance Specification: 4000 (L) * 900 (W) * 1600 (H) mm Equipment Power: AC220V/50HZ/4.1KW Motor Power: 0.75KW Air Source Pressure: 0.45-0.8mpa Adhesive Type: Hot Melt Adhesive Coating Method: Spray Adhesive Cylinder Capacity: 7KG/h Paper Box Specification: Customizable Work Efficiency: Not less than 25 boxes/min, Product Box Adjustable Speed Operating Temperature: 210 ℃ Applicable Paper Box Material: 200-350g/㎡
Product Details
video demonstration
Equipment Introduction

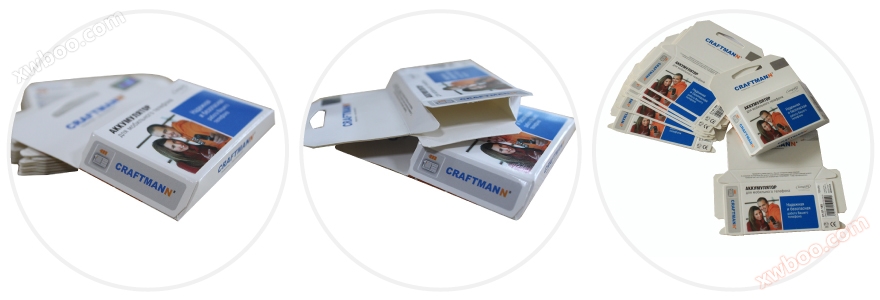

This machine is a specialized equipment for the automatic opening, loading of products, instruction manuals, and sealing of trapezoidal small boxes. It operates in a synchronized mechanical and electrical automatic mode,PLCControl with human-machine interface
Features&Advantages
1Using a rubbing opening method can make paper boxes that are more difficult to shape easier to form;
2It integrates box opening, loading, folding, gluing, and sealing, and is equipped with an advanced domestic fully automatic high-speed dual spray gun hot melt adhesive machine. The structure is compact and reasonable, and the operation and adjustment are simple;
3The sealing system has functions such as automatic opening, rubbing, automatic glue spraying, and sealing, which can automatically and quickly complete the packaging process;4Using servo motorsPLCProgrammable control system, human-machine interface display and operation are clearer and more convenient, with a high degree of automation and more user-friendly;
5adoptImported from SpainMELTON glue gunCooperate with the encoder and decoder to accurately countThe spray adhesive system is stable and precise.
6Using insufficient action protection device, no instruction manual provided without product, no box provided,No instruction manual, no suction box, shortage of materials alarm prompt at each workstation,Safe and reliable operation;
7Can be integrated with other production lines such as labeling machines, inkjet printers, online weighing instruments, etc. for linked production

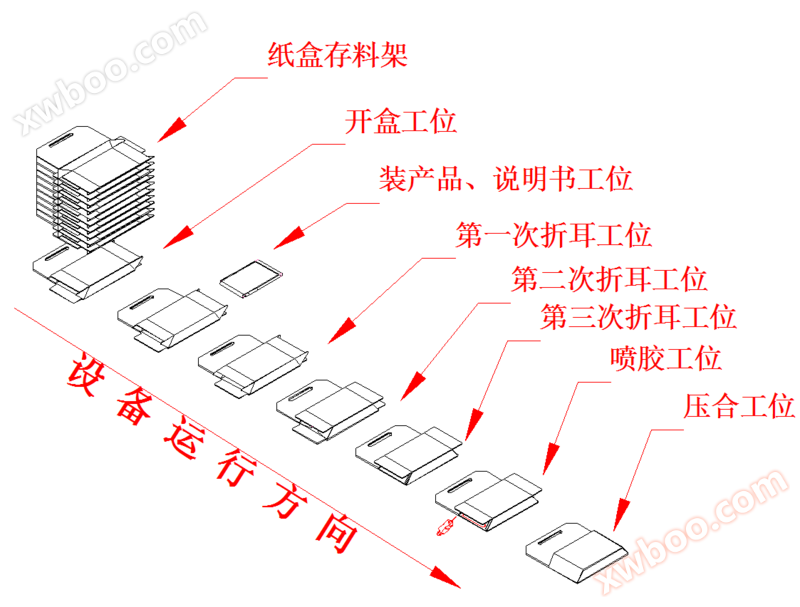

workflow
