Screw type industrial chiller unit

Product Details

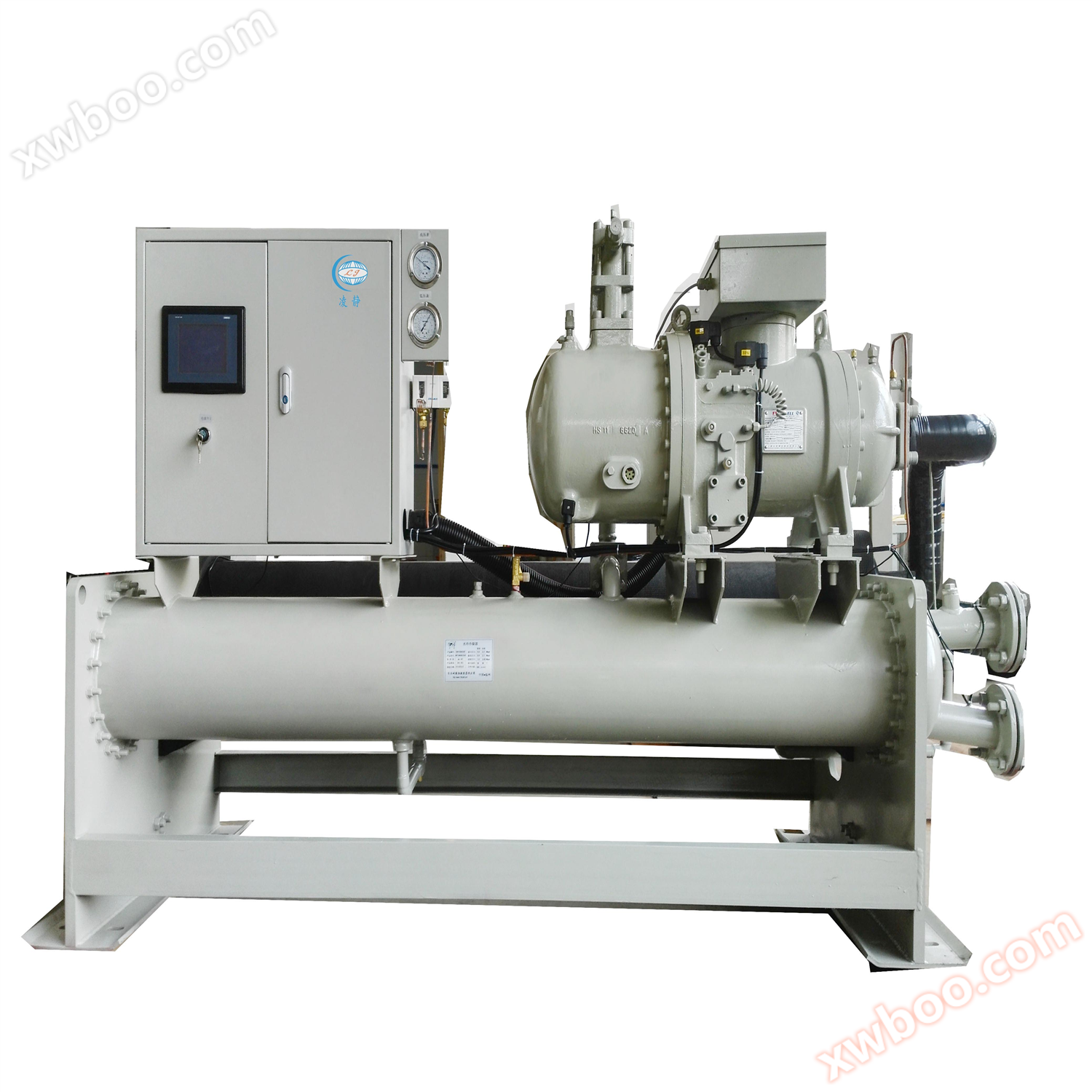

Ling JingLJR-Variable frequency water-cooled screw chiller

This variable frequency chiller unit uses5:6Semi enclosed screw variable frequency compressor, cooling range:95000~2200000Kcal/hAdopting a microcomputer control system, the heat exchange tubes of this chiller unit are designed according to customer requirements314LHeat exchange tubes. Ensure that the tube side of the evaporator and the shell side of the condenser are circulating acidic and alkaline corrosive liquids. Suitable for special requirements in various anodizing and electroplating industries. This type of model can also be equipped with a heat recovery device according to the user's needs, which can recover the "waste heat" scattered into the atmosphere and provide users with50~60℃Make hot water more suitable for industrial refrigeration production.

model		LKR-210WS
Refrigeration capacity	KW	210
	Kcal/h	180.2
Temperature control of frozen water	℃	5~20℃
compressor	type	Variable frequency screw compressor
	Total input powerKW	41*1
	Unit operating currentA	70
	power supply	3each other380V-50Hz
	Number of compressors(tower)	1
	Energy control%	Stepless regulation
evaporator	type	316 Lshell and-tube evaporator
	Interface caliber(inch)	3」
	Chilled water flow rate cubic	36
condenser	type	316LShell and tube condenser
	Interface caliber(inch)	3」
	Cooling water flow rate cubic	43
outline dimensionmm	longwidetall	24509001750
Whole machine weight	Kg	1380
Unit protection device	Phase sequence protection, high and low voltage protection, current overload protection, antifreeze protection, water cut-off protection, startup delay protection, and fusible plug protection,
