National standard PE pipe

national standardPE pipe materialThe implementation standard is GB/T13663 2018,Divided from zero pressure level: PN1.6Mpa SDR11, PN1.25Mpa SDR13.6PN1.0Mpa SDR17、PN0.8Mpa SDR21、PN0.6Mpa SDR26 ， There are five categories in total. The higher the pressure level, the thicker the wall thickness, and the stronger the pressure it can withstand. SDR refers to the standard coefficient ratio of pipelines, which is the ratio of nominal diameter to wall thickness.

PE pipes are usually divided into two types: water supply pipes and gas pipes. The water supply pipe has black blue stripes, and the gas pipe has black yellow stripes. Generally, for the same specifications and pressure levels, PE gas pipes have a thicker inner diameter than PE water supply pipes.

Water supply PE pipe

Gas PE pipe

PE pipe specificationsRoughly divided into 20 mm，25mm，32mm，40mm，50mm，63mm，75mm，90mm，110mm，125mm，140mm，160mm，180mm，200mm，225mm，250mm，280mm，315mm，355mm，400mm，450mm，500,mm，560mm，630mm wait;

PE pipe shapeDivided into: straight pipe and coil pipe. Straight pipes are 6 meters, 9 meters, and 12 meters in length, with a diameter of 20-630mm; coils are divided into rolls, generally 100 meters or 200 meters per roll, with a diameter of 20-63mm;

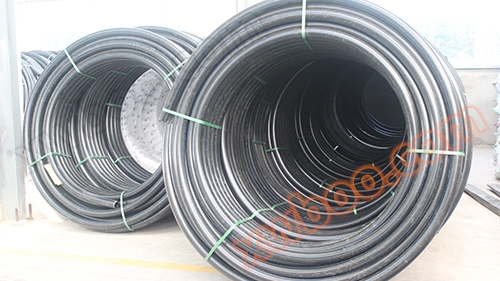

Coil PE pipe

Straight pipePE pipe material

Hengxing Pipe Industry provides services to a wide range of usersnational standardPE Pipe Specification Table:

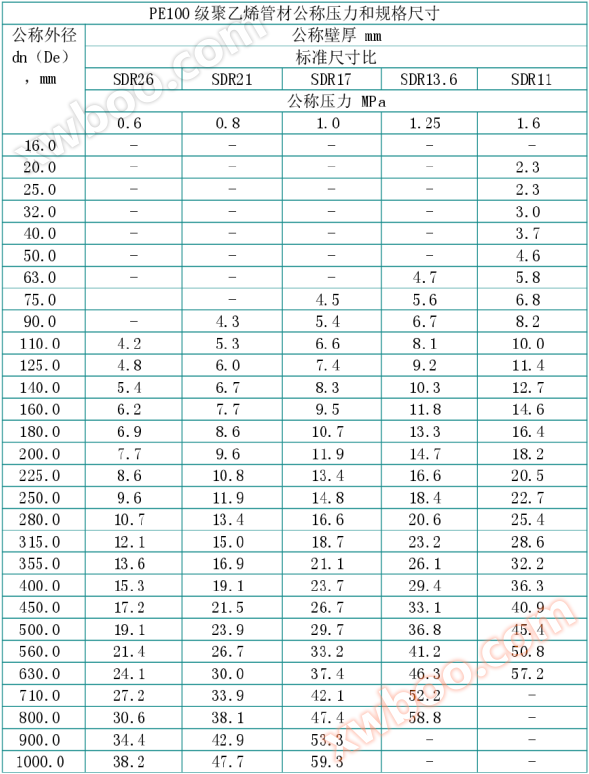

national standardPE Pipe Specification Table
