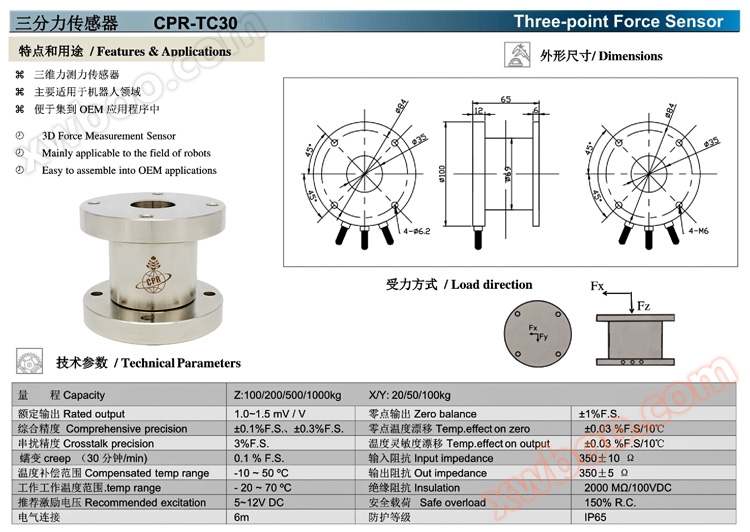

Multi dimensional force sensor CPR-TC30
NegotiableUpdate on 02/25
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
Three dimensional force sensors are mainly suitable for the field of robotics and are easy to integrate into OEM applications. A three component force sensor is a high-precision force measuring device used to simultaneously measure forces in three mutually perpendicular directions. It consists of three mutually perpendicular strains
Product Details
Three dimensional force sensors,Mainly applicable to the field of robotics,Easy to gatherOEMIn the application.
A three component force sensor is a high-precision force measuring device used to simultaneously measure forces in three mutually perpendicular directions. It consists of three perpendicular strain beams, each corresponding to a force in one direction. When the sensor is subjected to external force, the strain beam deforms, causing a change in resistance. The resistance change is converted into an electrical signal through a measurement circuit. Due to its unique structure, the three component force sensor can accurately measure force components in three directions and is widely used in fields such as automotive collision testing, robotics, aerospace, etc. By measuring forces in three directions, the three component force sensor can provide more comprehensive force information, which helps to achieve more accurate control and optimized design.
