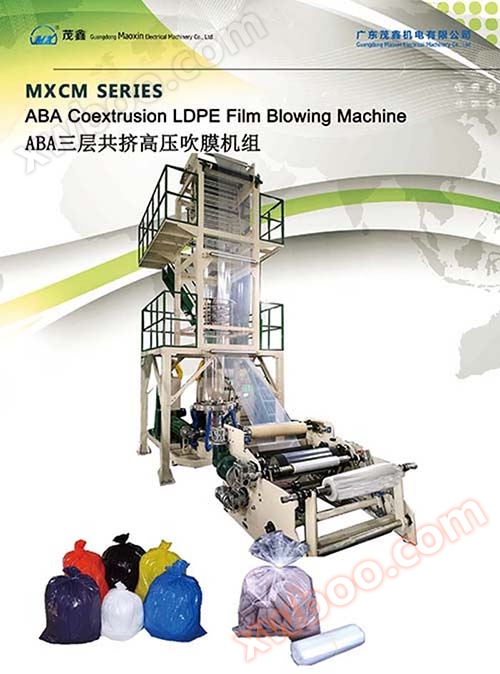

MXCM series ABA 3-layer co extrusion high-pressure blown film unit

NegotiableUpdate on 03/22

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

Product Introduction: Our company produces a Hu three-layer co extrusion A+B+A combination blown film machine, which has unique characteristics for producing HDPE and LLDPE

Product Details

Product Introduction

Our company produces the Hu three-layer co extrusion A+B+A combination blown film machine, which has unique characteristics in producing HDPE and LLDPE. The physical strength of the film has been improved through multi-layer co extrusion. By using one host to supply the inner and outer layers, the configuration of one host can be reduced, while achieving the goal of cost reduction, energy saving and low consumption.

Main parameters of the product:

model	MCXM-700	MXCM-900	MXCM-1200	MXCM-1500
Film width	300-600mm	300-800mm	400-1100mm	400-1400mm
film thickness	0.03-0.1mm
maximum yield	70kg/h	90kg/h	120kg/h	150kg/h
screw diameter	Φ45X2	Φ50X2	Φ55X2	Φ65+Φ55
screw length-to-diameter ratio	30:1
screw speed	10-110r/min
host power	11kwX2	15kwX2	2kwX2	37kw+22kw
speed reducer	146X2	173X2	180X2	200+180
Mouth membrane diameter	Φ125mm	Φ150mm	Φ250mm	Φ300mm
Form of roll up	Surface friction type, automatic roll change/Torque motor control
Electrical Control Cabinet	touch screen+PlCProgrammable controller, contactor, circuit breaker, switch
Total power	50kw	65kw	100kw	130kw
Machine size (length)XwideXHigh)	7X2.8X5.3M	7X2.8X5.3M	8X3.3X6M	9X3.6X6.5M
machine weight	3.5T	5.5T	8T	10T

*Due to continuous research and improvement, our company reserves the right to change the design.
