Overview
The leak free fluorine lined magnetic pipeline pump (referred to as the magnetic pipeline pump) is a new type of pump that applies modern magnetic mechanics principles and uses the magnetic transmission of permanent magnets to achieve non-contact transmission of torque. When the motor drives the outer rotor (i.e. outer magnetic steel) assembly to rotate, the magnetic field lines pass through the isolation sleeve and drive the inner rotor (i.e. inner magnetic steel) assembly and impeller to rotate synchronously. Due to the medium being enclosed in the stationary isolation sleeve, the purpose of leak free pumping of the medium is achieved, completely solving the shaft seal leakage of mechanical transmission pumps. The designed fully sealed, leak free, energy-saving new industrial pump meets the performance standards and can replace expensive imported chemical pumps.
Product Details

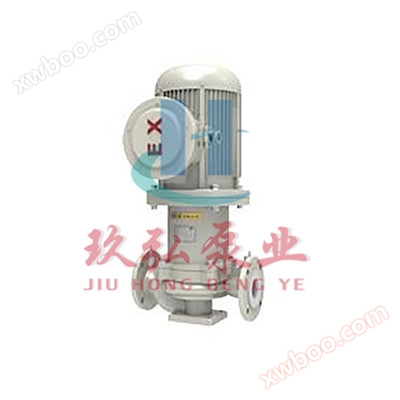

Fluorine lined pipeline pump HCLF leak free fluorine lined magnetic pipeline pump
1、 HCLF fluorine lined magnetic pumpOverview The leak free fluorine lined magnetic pipeline pump (referred to as the magnetic pipeline pump) is a new type of pump that applies modern magnetic mechanics principles and uses the magnetic transmission of permanent magnets to achieve non-contact transmission of torque. When the motor drives the outer rotor (i.e. outer magnetic steel) assembly to rotate, the magnetic field lines pass through the isolation sleeve and drive the inner rotor (i.e. inner magnetic steel) assembly and impeller to rotate synchronously. Due to the medium being enclosed in the stationary isolation sleeve, the purpose of leak free pumping of the medium is achieved, completely solving the shaft seal leakage of mechanical transmission pumps. The designed fully sealed, leak free, energy-saving new industrial pump meets the performance standards and can replace expensive imported chemical pumps. 2、 HCLF fluorine lined magnetic pipeline pumpfeature 1. HCLF leak free fluorine lined magnetic pipeline pump is a new type of magnetic pipeline pump independently developed and designed based on HCF series products. It has both the characteristics of pipeline centrifugal pump and the advantages of magnetic pump, and is a new generation of leak free pipeline centrifugal pump; 3、 Application of HCLF fluorine lined pipeline magnetic pump
Product Overview:
2. The pump body, impeller, and pump cover are designed using CFD computer fluid dynamics for module design and casting of hydraulic components. It has the characteristics of wide flow channel, high efficiency, good cavitation allowance performance, small radial force, accurate size, smooth flow channel, and good interchangeability;
3. Fluoroplastics (PTFE, FEP, PFA) are today's corrosion-resistant materials (commonly known as "plastic kings"), which can transport corrosive media such as acids, alkalis, oxidants, etc. of any concentration (strength) without damage;
4. Ferrite magnets, neodymium iron boron, and samarium cobalt are selected as the magnets, which have good magnetism, high temperature resistance, and no demagnetization; Its magnetic energy product is 28 megaGauss Ultras, and its temperature tolerance limit is 350 ℃. Under conventional cooling conditions, its high operating temperature is limited to 260 ℃, which can largely avoid demagnetization, making the theoretical service life of the magnetic material up to 20 years
5. The moving ring, shaft sleeve, and sliding bearing are made of high wear-resistant and temperature resistant materials such as crystalline silicon carbide, which have high strength, wear resistance, good flexibility, and strong corrosion resistance, effectively extending the service life of the pump. The rolling bearings are imported NSK or SKF grease lubricated maintenance free bearings;
6. No leakage, all sealing points adopt closed static sealing, driven by magnetic couplings, no need for nitrogen sealing, economical and completely solve medium leakage
7. Direct connection and pull-out design, no need to disassemble pipelines, easy to maintain.
8. Vertical installation, compact structure, small footprint, low vibration, low noise, and particularly smooth operation;
9. From coupling transmission to synchronous drag, there is no contact or friction. Low power consumption, high efficiency, and damping effect, reducing the impact of motor vibration on the pump and the impact of pump cavitation vibration on the motor;
Widely used in the transportation of corrosive liquids in production processes such as petroleum, chemical, alkali, smelting, rare earth, pesticides, dyes, pharmaceuticals, papermaking, electroplating, electrolysis, radio, chemical foil, scientific research institutions, and national defense industry, especially suitable for the transportation of flammable, explosive, volatile, toxic, high-temperature, strong alkali, organic solvents, and valuable liquids.
The leak free fluorine lined magnetic pipeline pump (referred to as the magnetic pipeline pump) is a new type of pump that applies modern magnetic mechanics principles and uses the magnetic transmission of permanent magnets to achieve non-contact transmission of torque. When the motor drives the outer rotor (i.e. outer magnetic steel) assembly to rotate, the magnetic field lines pass through the isolation sleeve and drive the inner rotor (i.e. inner magnetic steel) assembly and impeller to rotate synchronously. Due to the medium being enclosed in the stationary isolation sleeve, the purpose of leak free pumping of the medium is achieved, completely solving the shaft seal leakage of mechanical transmission pumps. The designed fully sealed, leak free, energy-saving new industrial pump meets the performance standards and can replace expensive imported chemical pumps.
Product Features:
HCLF Performance Parameter Table
Performance parameters:
model
speed
r/mintraffic
m3/hhead
mefficiency
％Net Positive Suction Head (NPSH)
mImport X Export
mmMotor power
kwtotal machine weight
kg
HCLF25-125
2900
1.5
22
18
2.5
25×20
1.1
27
2
20
20
2.5
3.2
18.5
24
3
HCLF25-160
2900
1.5
34.3
19
2.5
25×20
1.5
36
2
32
22
2.5
3.2
29.6
25
3
HCLF25-200
2900
1.5
52.5
18
2.5
25×20
3
51
2
50
20
2.5
3.2
48
22
3
HCLF25-250
2900
1.5
82
12
2.5
25×20
7.5
63
2
80
18
2.5
3.2
78.5
26
3
HCLF32-125
2900
2
22
20.5
2.5
32×20
1.5
30
3.2
20
20
2.5
5.5
18.5
18
3
HCLF32-160
2900
2
34.3
20.5
2.5
32×20
2.2
35
3.2
32
20
2.5
5.5
29.6
18
3
HCLF32-200
2900
2
52.5
32
2.5
32×20
4
61
3.2
50
36
2.5
5.5
48
34
3
HCLF32-250
2900
2
82
26
2.5
32×20
7.5
75
3.2
80
30
2.5
5.5
78.5
28
3
HCLF40-125
2900
4.4
22
16
2.5
40×25
1.5
35
6.3
20
20
2.5
8.3
18.5
23
3
HCLF40-160
2900
4.4
34.3
30
2.5
40×25
3
40
6.3
32
31
2.5
8.3
29.6
32
3
HCLF40-200
2900
4.4
52.5
26
2.5
40×25
5.5
66
6.3
50
33
2.5
8.3
48
32
3
HCLF40-250
2900
4.4
82
24
2.5
40×25
11
95
6.3
80
28
2.5
8.3
78.5
28
3
HCLF50-125
2900
7.5
22
43
2
50×32
2.2
44
12.5
20
51
2
15
18.5
49
2.5
HCLF50-160
2900
7.5
34.3
35
2
50×32
3
61
12.5
32
47
2
15
29.6
47
2.5
HCLF50-200
2900
7.5
52.5
28
2
50×32
7.5
113
12.5
50
40
2
15
48
48
2.5
HCLF50-250
2900
7.5
82
23
2
50×32
11
180
12.5
80
33
2
15
78.5
36.5
2.5
HCLF65-125
2900
15
21.8
46
2
65×50
3
80
25
20
56
2
30
18.5
65
2.5
HCLF65-160
2900
15
35
46
2
65×50
5.5
97
25
32
56
2
30
30
65
2.5
HCLF65-200
2900
15
53
34
2
65×40
11
120
25
50
46
2
30
47
50
2.5
HCLF65-250
2900
15
82
33
2
65×40
18.5
203
25
80
48
2
30
78
50
2.5
HCLF65-315
2900
15
127
28
2.5
65×40
30
345
25
125
39
2.5
30
123
42.5
3
HCLF80-125
2900
30
22.5
52
3
80×65
5.5
125
50
20
65
3
60
18
70
3.5
Application of HCLF fluorine lined pipeline magnetic pump
Application fields:
Widely used in the transportation of corrosive liquids in production processes such as petroleum, chemical, alkali, smelting, rare earth, pesticides, dyes, pharmaceuticals, papermaking, electroplating, electrolysis, radio, chemical foil, scientific research institutions, and national defense industry, especially suitable for the transportation of flammable, explosive, volatile, toxic, high-temperature, strong alkali, organic solvents, and valuable liquids.
