DCP series high barrier multi-layer co extrusion sheet unit

NegotiableUpdate on 03/02

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

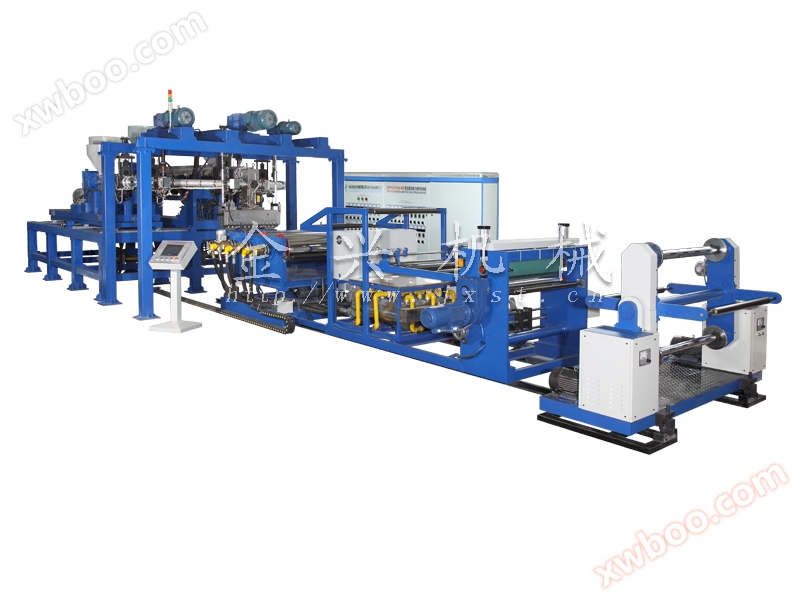

DCP series high barrier multi-layer co extrusion sheet unit

Product Details

Model/Parameters	DCP105/65/65-800	DCP110/75/75-1000	DCP120/75/75-1300
Adapt to materials	PP,HIPS,GPPS,PE	PP,HIPS,GPPS,PE	PP,HIPS,GPPS,PE
Screw diameter (mm)	105/65/65	110/75/75	120/75/75
screw length-to-diameter ratio	1:33	1:33	1:33
Sheet width (mm)	720	920	1220
Sheet thickness (mm)	0.1-2	0.1-2	0.1-2
Maximum yield (kg/h)	350	450	600
Whole machine power (kw)	180	240	280
Dimensions (mm)	15000x2000x2600	15000x2200x2600	18000x2800x2600

Application areas:

Food packaging, electronic products, vacuum forming, blow molding

Performance characteristics:

1. Suitable for the production of multi-layer co extruded sheets of PP, HIPS, GPPS, PE, EVOH, QB515.

2. The extruder screw adopts a large aspect ratio.

3. It has good plasticizing effect.

4. The thickness of the sheet is uniform.

5. Advantages such as consistent flow rate.

6. The unit adopts an advanced non-stop hydraulic quick screen changing device.

7. Easy to operate, superior performance, and improved production efficiency.

8. High precision distributor, hanger type die head, ensuring uniform flow velocity and pressure of the fluid cross-section during molding.

9. The rolling roller adopts turbine transmission adjustment, which is easy to operate and has high precision.

10. The super mirror calendering roller has a uniform surface temperature, making the produced sheet smooth, bright, and uniform in thickness.

11. This machine can produce composite sheets of various colors using plastics with different characteristics according to the different purposes of the products.
