Cup making production line

NegotiableUpdate on 03/02

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

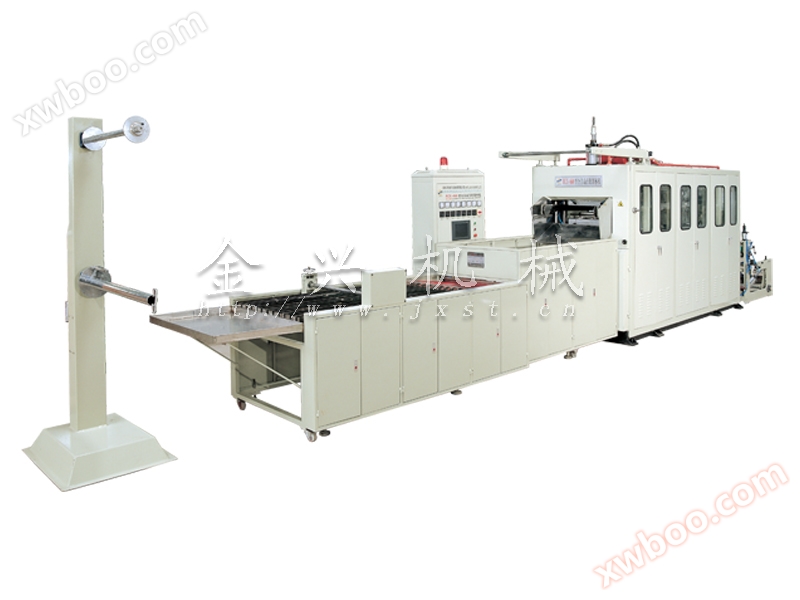

Cup making production line

Product Details

parameter	HPC-660（Mode）	HPC-700（Mode）	HPC-720（Mode）
Adapt to materials	PP、PE、PET、HIPS、GPPS	PP、PE、PET、HIPS、GPPS	PP、PE、PET、HIPS、GPPS
Forming area (mm)	650×320	700×350	720×450
Molding depth (mm)	120/180	120/180	120/180
Forming speed (times/min)	20-35	20-35	20-35
Maximum sheet width	660	700	720
sheet thickness	0.3-2.0	0.3-2.0	0.3-2.0
Whole machine power (KW)	≤45	≤50	≤55
Gas consumption (Mpa)	0.6-0.8	0.6-0.8	0.6-0.8
Water consumption (m3/h)	≤0.5	≤0.5	≤0.5

Performance characteristics:

1. The machine adopts a hydraulic four column structure, which has the advantages of smooth operation, low noise, and strong locking force. It integrates electromechanical, pneumatic, and hydraulic systems, is controlled by PLC, and has high-precision variable frequency feeding.

2. High degree of automation and fast production speed. By installing different molds, different products can be produced, achieving the goal of one machine with multiple uses.

3. Imported branded electrical and pneumatic components are used for stable operation, reliable quality, and long service life.

4. The whole machine has a compact structure, which integrates the functions of pressurization, molding, shearing, cooling, and finished product blowing into a the first mock examination, so that the product process is short, the finished product is of high grade, and meets the national health standards.

5. This machine is suitable for producing plastic products such as PP, PE, PET, GPPS, HIPS, etc. Thin walled containers such as cups, boxes, bowls, etc., such as milk cups, jelly cups, ice cream cups, disposable drinking cups, instant noodle bowls, fast food boxes, food boxes, etc.
