Shenzhen Science Popularization Rui Sensing Instrument Co., Ltd
Column type weighing sensor CPR705-38
NegotiableUpdate on 02/25
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview

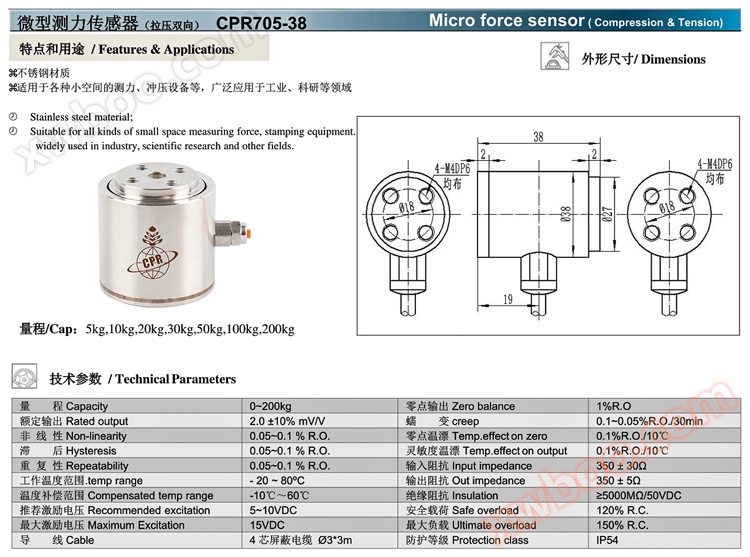

Column type force measuring and weighing sensor, model CPR705-38, made of stainless steel material, suitable for measuring and stamping equipment in various small spaces, widely used in industry, scientific research and other fields. The selection table refers to the specification table in the following figure for column type weighing sensors
Product Details
Column type force and weight sensor, model CPR705-38, made of stainless steel material, suitable for various small space force and stamping equipment, widely used in industry, scientific research and other fields. The selection table refers to the specification table in the following figure
-
The core part of the column type weighing sensor is the strain gauge, which can sense changes in force. When the cylinder undergoes deformation under heavy pressure, the strain gauge will change its resistance, thereby generating an electrical signal. Subsequently, the measurement circuit amplifies the electrical signal and converts it into the corresponding weight value output. To ensure accurate measurement, it is necessary to ensure that the force point of the sensor is perpendicular to the support surface during installation, and avoid lateral and shear forces. In addition, considering the impact of foundation settlement, it is recommended to conduct regular calibration. A reasonable installation method can not only ensure accurate measurement of sensors, but also extend their service life.
