Analog amplifier AMP-6-2B
NegotiableUpdate on 02/25
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
Analog amplifier is a commonly used electronic device in instruments, which works based on proportional amplification, amplifying the input signal by a certain factor and outputting it. An analog amplifier consists of three parts: an input stage, an intermediate stage, and an output stage. It detects and transmits weak signals through linear amplification of voltage or current. The function of an analog amplifier is to amplify the weak signal output by the sensor, making it easier for subsequent circuit processing and recording

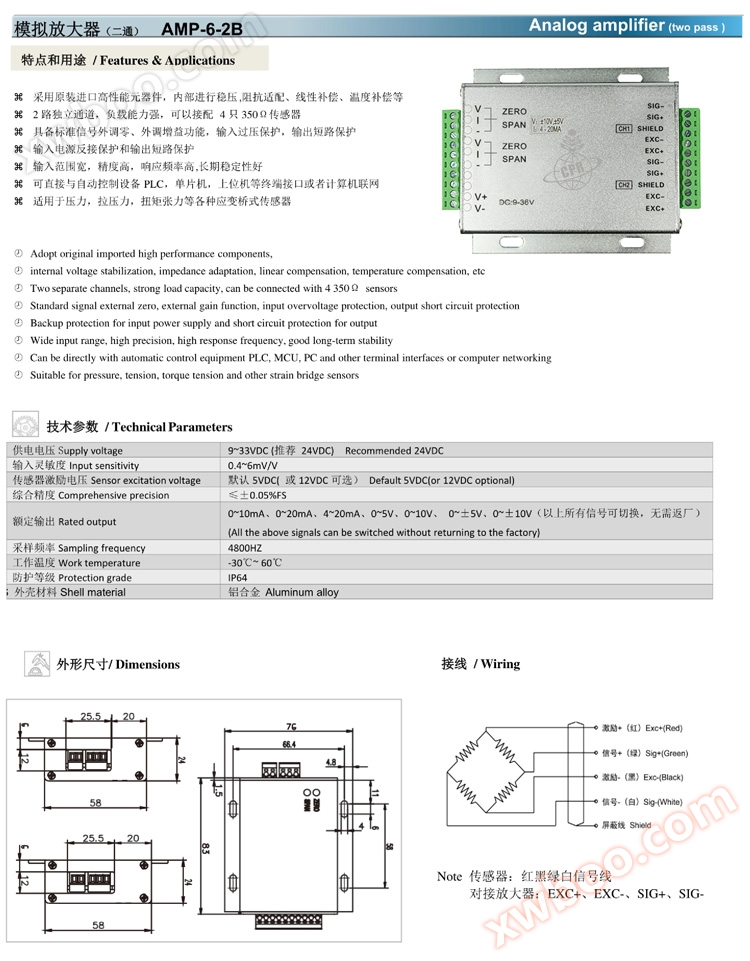

Product Details
Using original imported high-performance components, with internal voltage stabilization, impedance adaptation, linear compensation, temperature compensation, etc
2 independent channels, strong load capacity, can be equipped with 4 350 Ω sensors
Equipped with standard signal external zero and gain adjustment functions, input overvoltage protection, and output short-circuit protection
Input power reverse protection and output short circuit protection
Wide input range, high accuracy, high response frequency, and good long-term stability
Can be directly connected to automatic control equipment such as PLC, microcontroller, upper computer and other terminal interfaces or computer networking
Suitable for various strain bridge sensors such as pressure, tensile force, torque tension, etc
